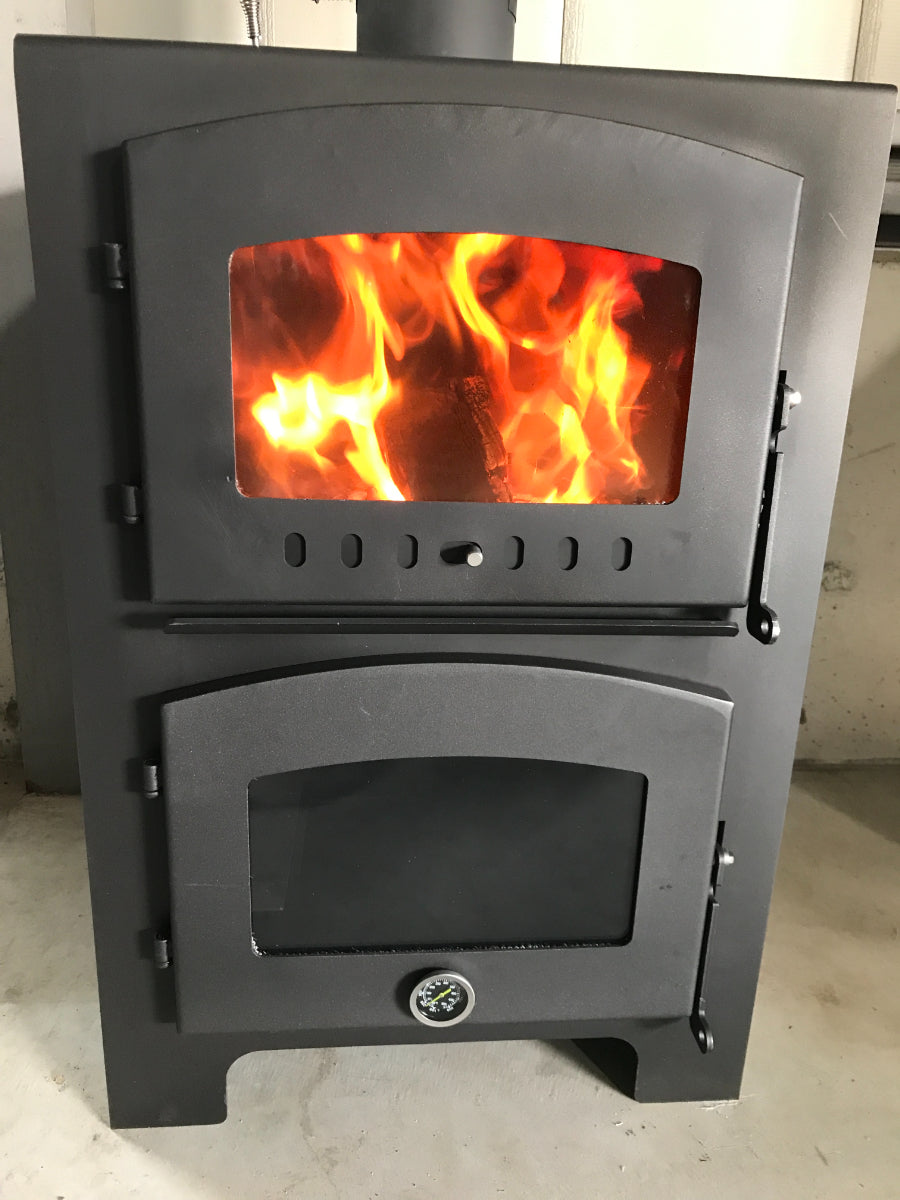

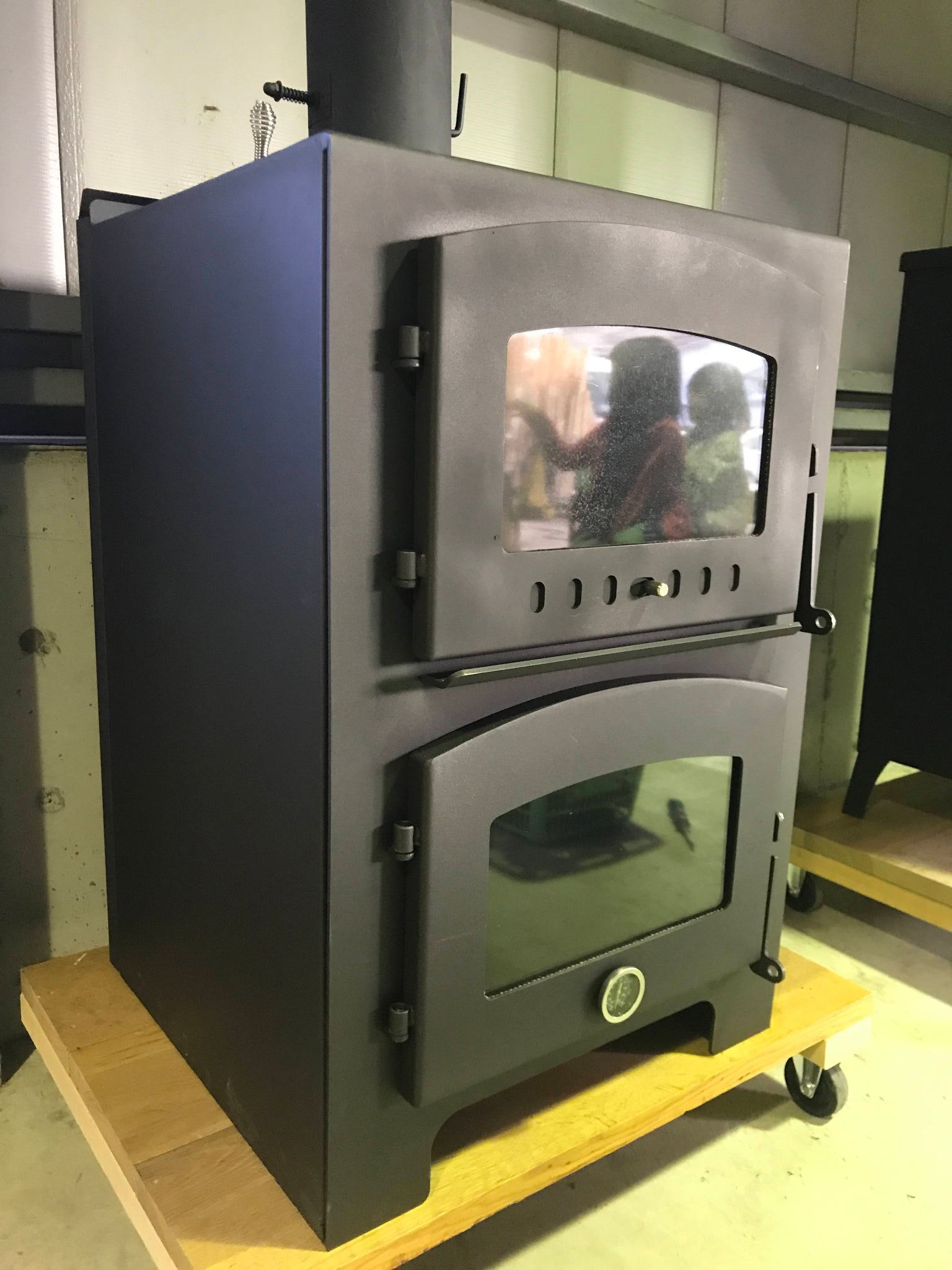

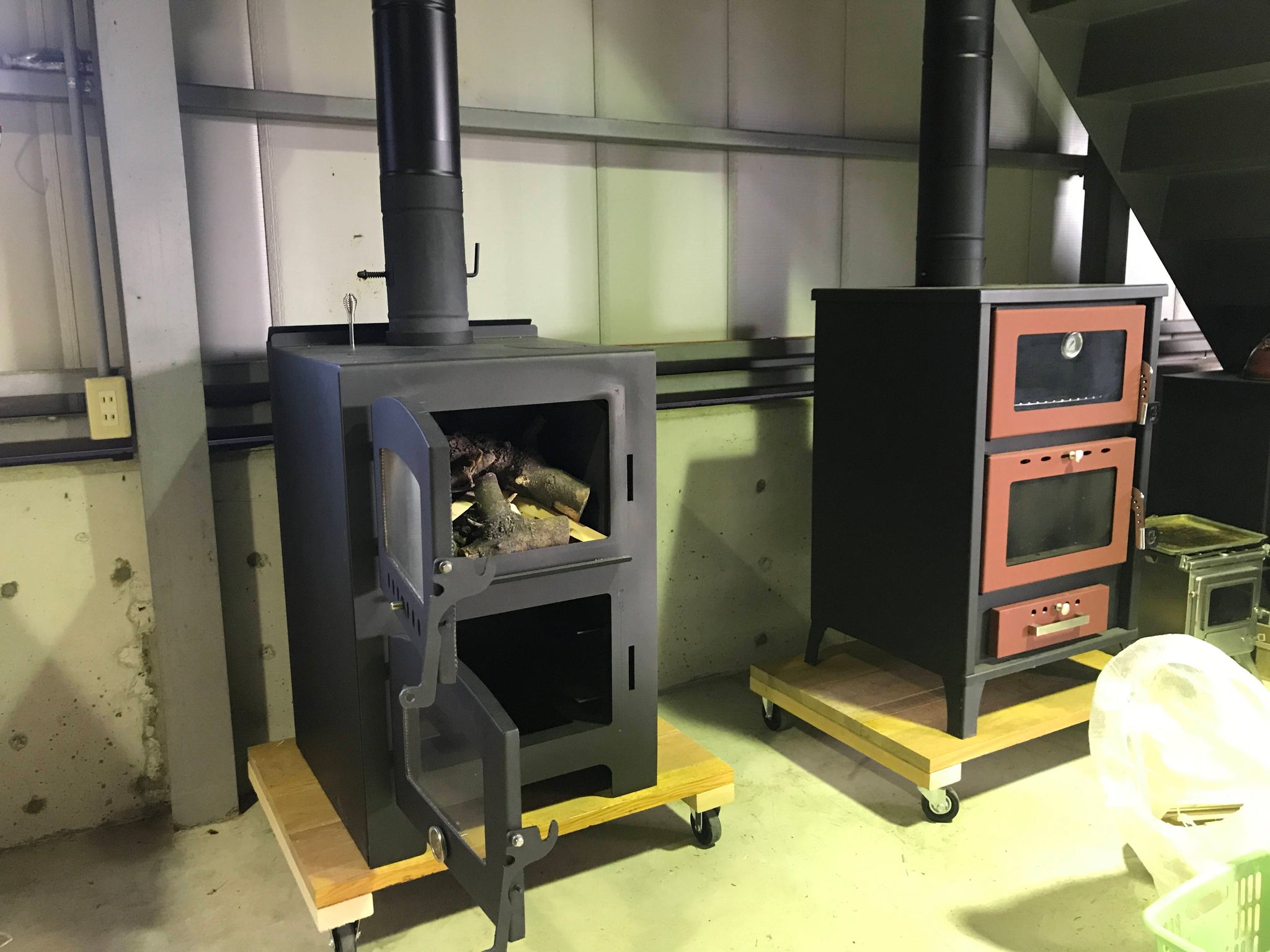

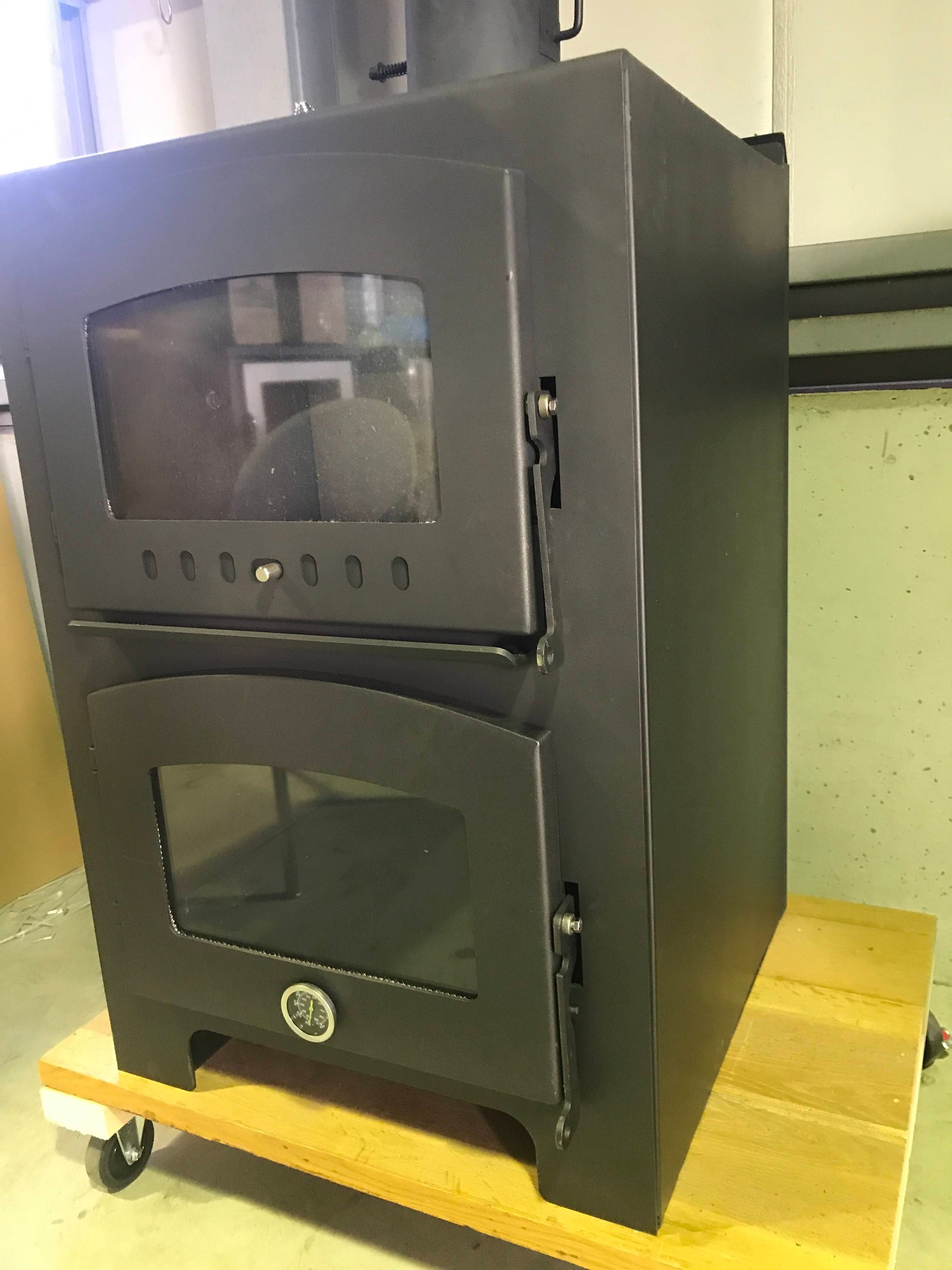

CF15 wood-burning steel stove with oven
Dimensions W643mm D550mm H865mm
Maximum size of firewood 360mm
Weight 138Kg
Chimney diameter inner diameter 154mm
Output 15kw
Certification European Certified
Country of manufacture China
Safety distance to combustibles Back 300mm Side 300mm
142mm from the back to the chimney center

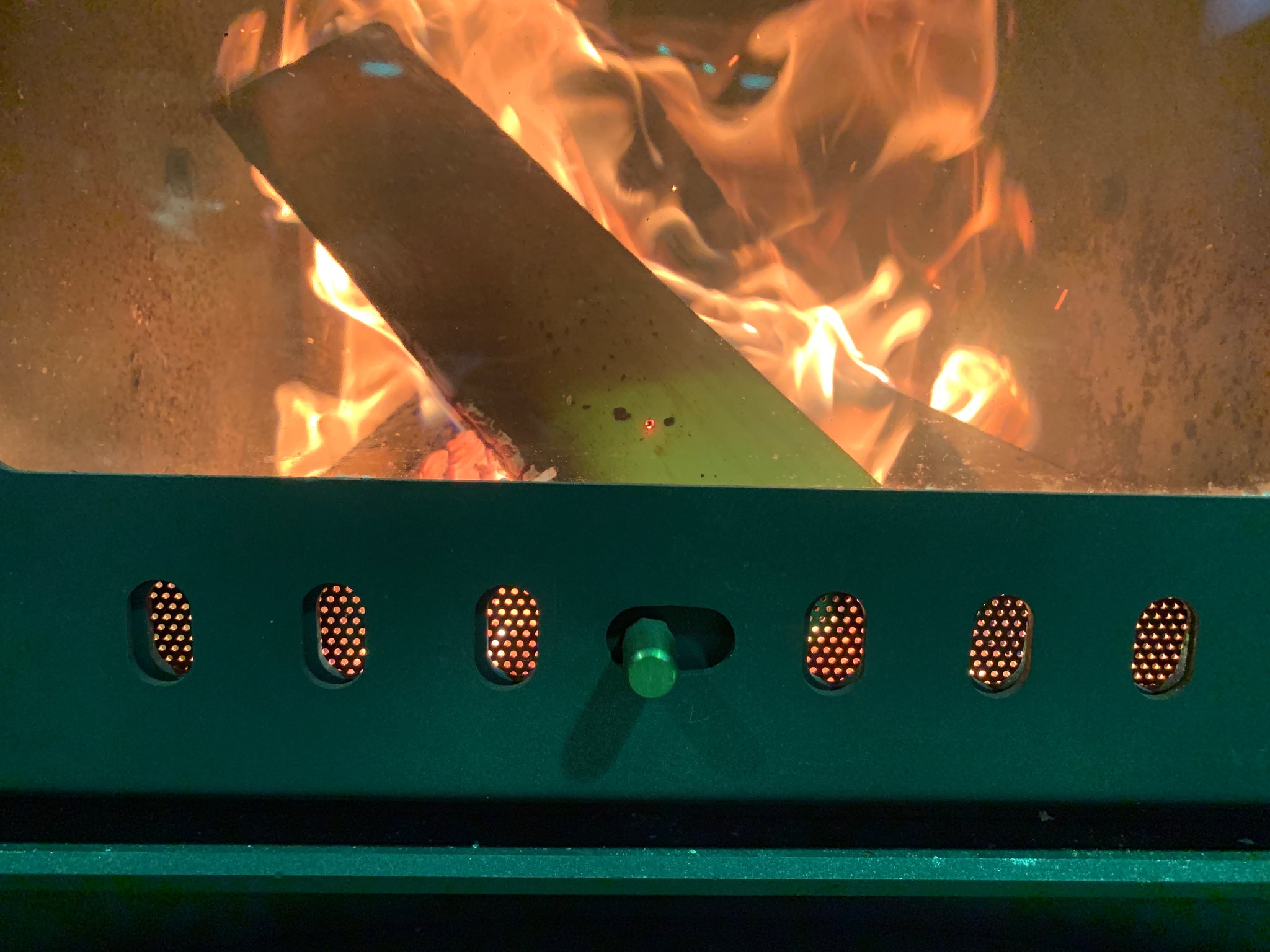

As you can see in the last photo, I improved it so that sparks would not fly out of the air intake.
Since we installed a punching metal screen, there is no fear of sparks flying out like before.
It has a structure similar to a pican oven.
When using the oven, the damper on the top plate is operated to change the flow of smoke and heat the oven.

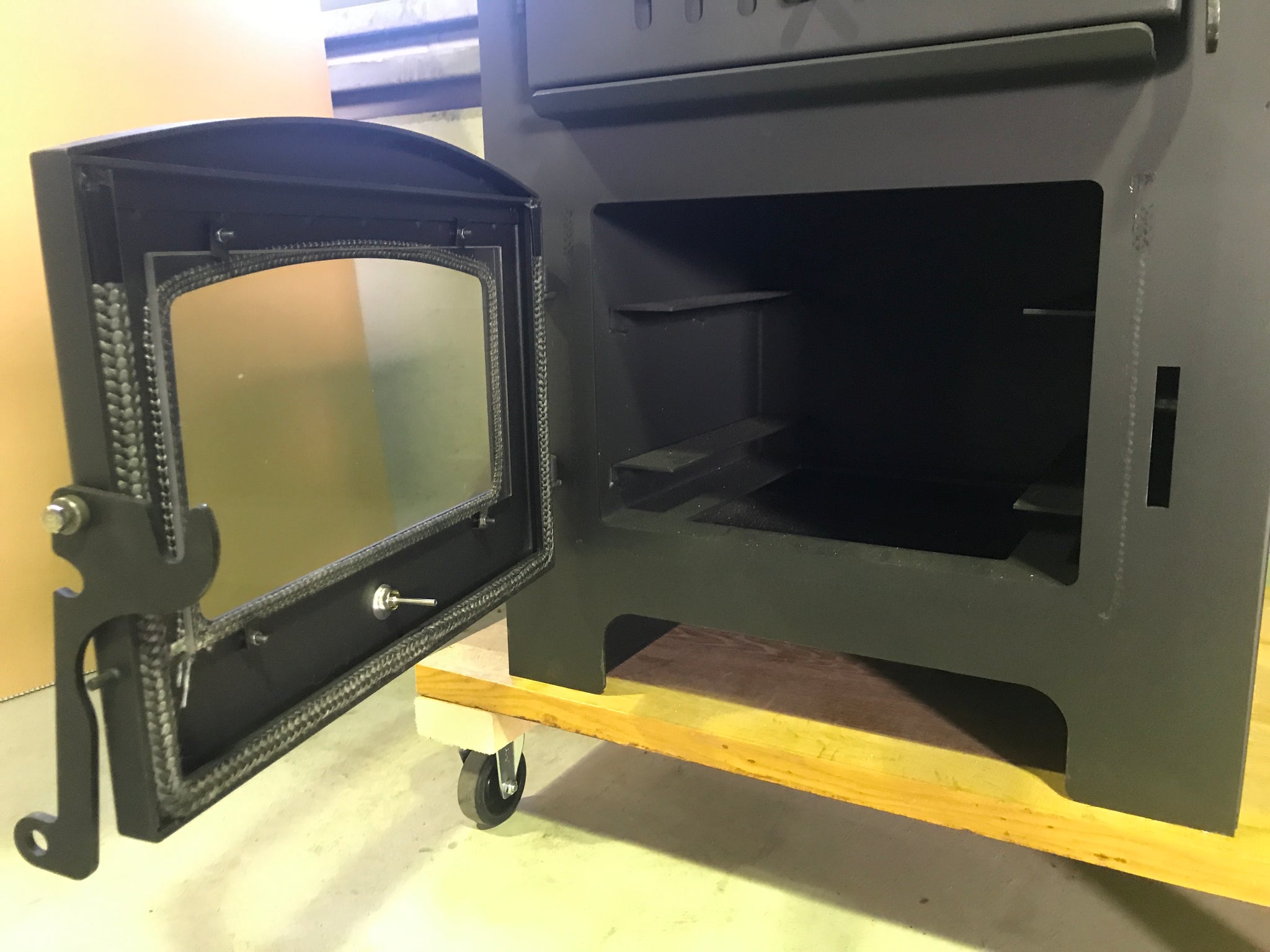

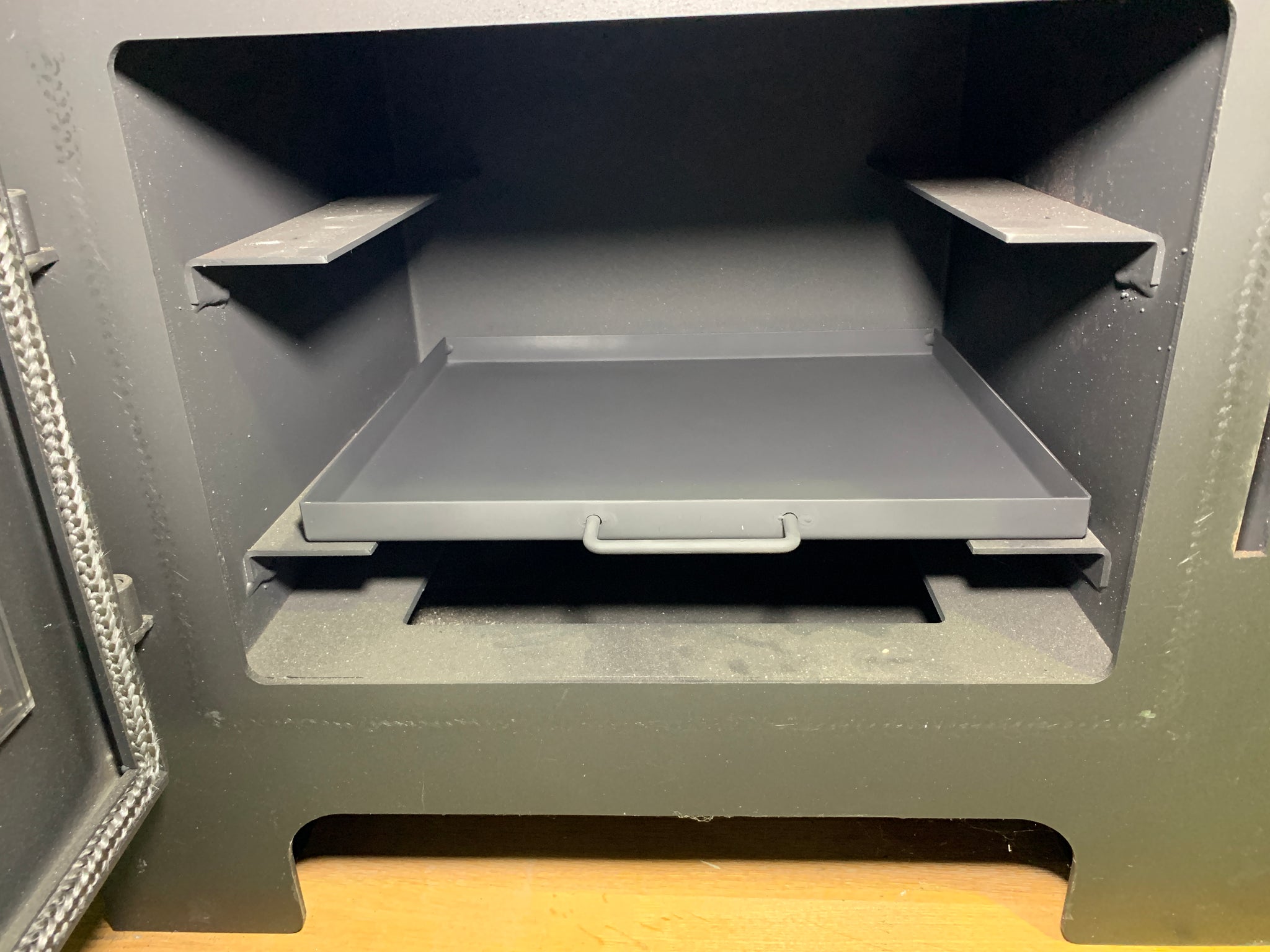

Since the upper part becomes the combustion chamber, the temperature rise of the lower oven is gentle.
When using the oven, the temperature inside the oven rises quickly by avoiding the ash in the combustion chamber.

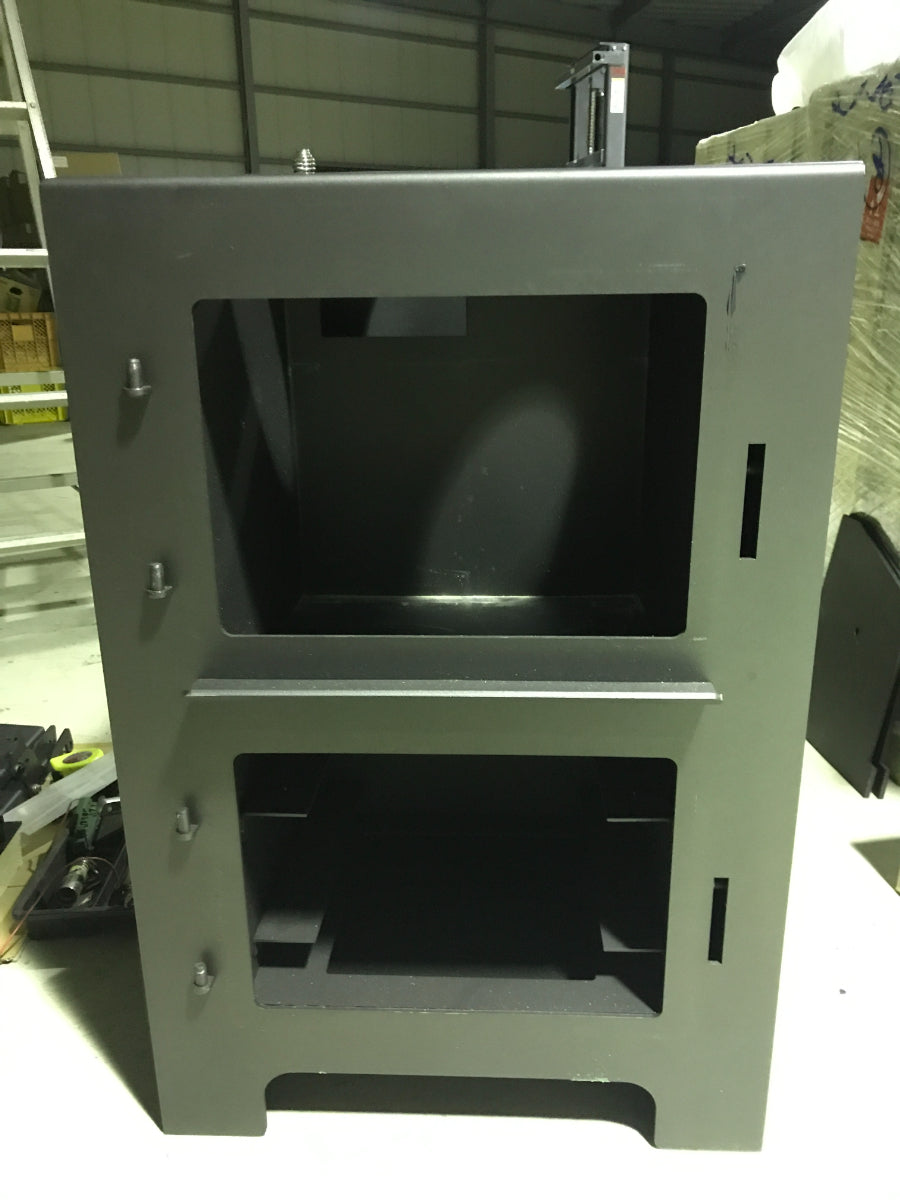

As a feature of this model, the main body around the combustion chamber is made of very thick steel plate and has strength.
A thin steel plate is installed around it, and both the sides and the back are triple-layered.
There is no problem even if the temperature of the side and back does not rise and you can touch it with your hand.
However, as for the sides, the heat from the top plate is transmitted about 15 cm, so if you touch it, you will get burned, so be careful.
Because of the above structure, the furnace stand and furnace wall can be simple, so there is no problem, so the cost of installing the main unit is low.
We also support pick-up to a warehouse in Takarazuka City, Hyogo Prefecture.
Please search for Yama no Entotsuya on Google Map for pick-up location.
This product will be delivered to the store or delivered to a Fukuyama Transporting branch.
Therefore, you will need to pick it up at the nearest Fukuyama Transporting branch.
The shipping fee for branch stops by Fukuyama Transporting is 10,000 yen for Honshu and Hokkaido, and for Okinawa and remote islands, please inquire.
