Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
  • Load image into Gallery viewer, Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
  • Load image into Gallery viewer, Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
  • Load image into Gallery viewer, Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting
  • Load image into Gallery viewer, Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting

Single Chimney 150mm Damper Included Straight Pipe Length 250mm Heat Resistant 600℃ Painting

Vendor
山のえんとつ屋
Regular price
¥9,000
Sale price
¥9,000
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

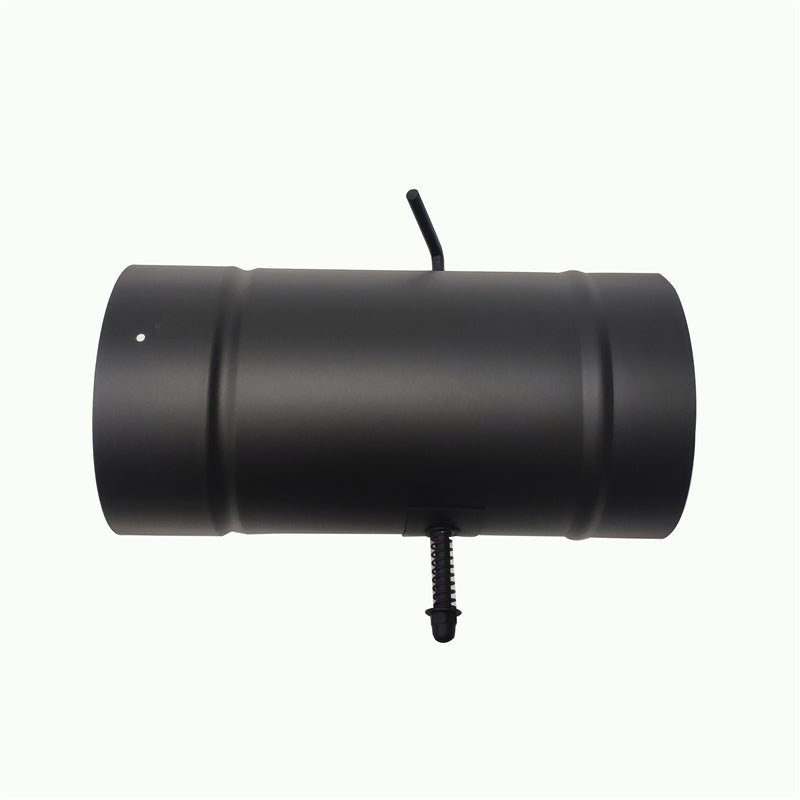

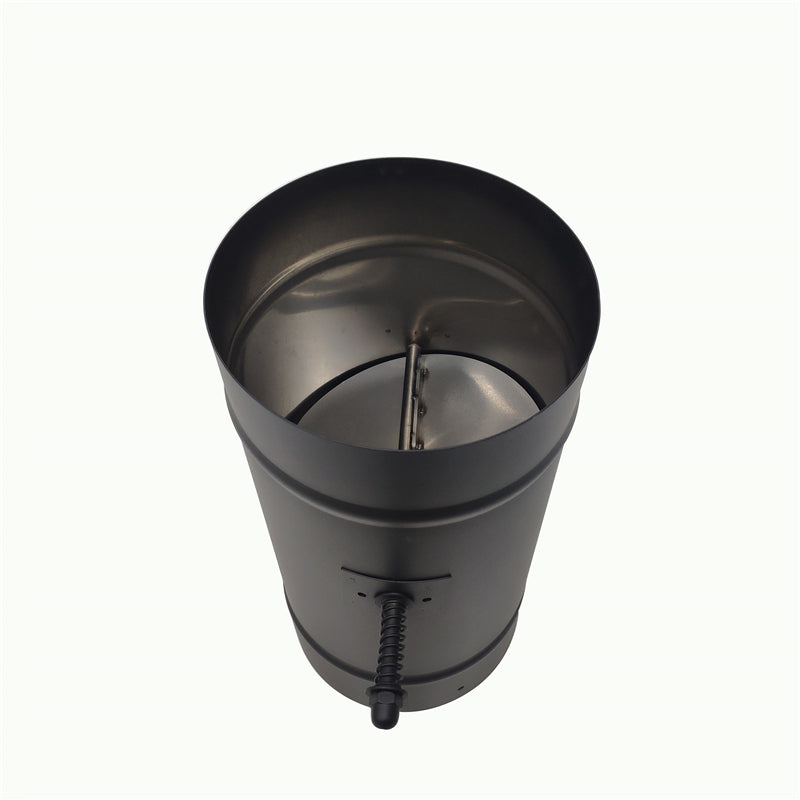

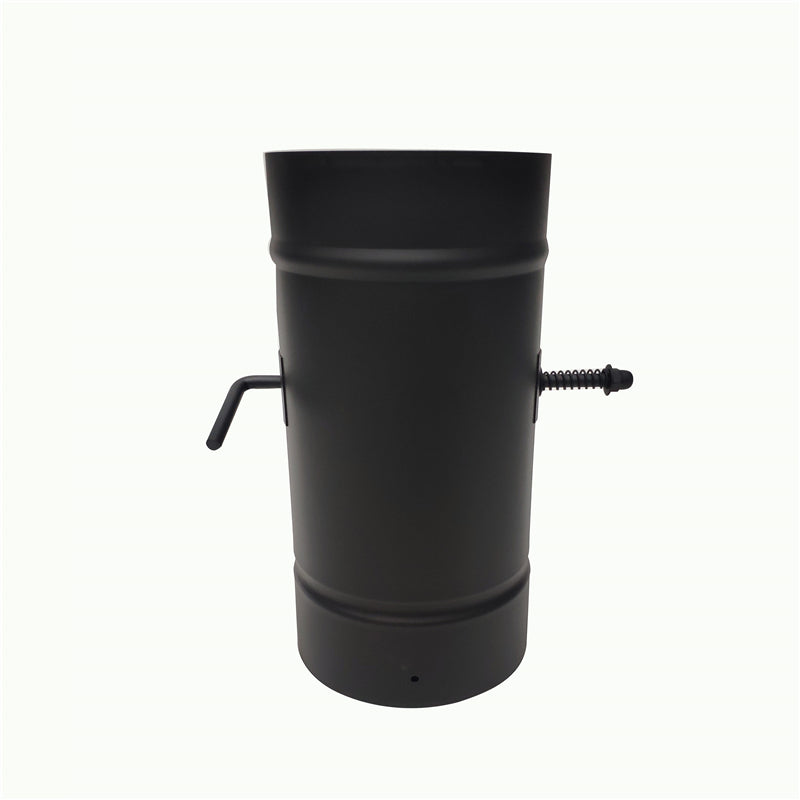

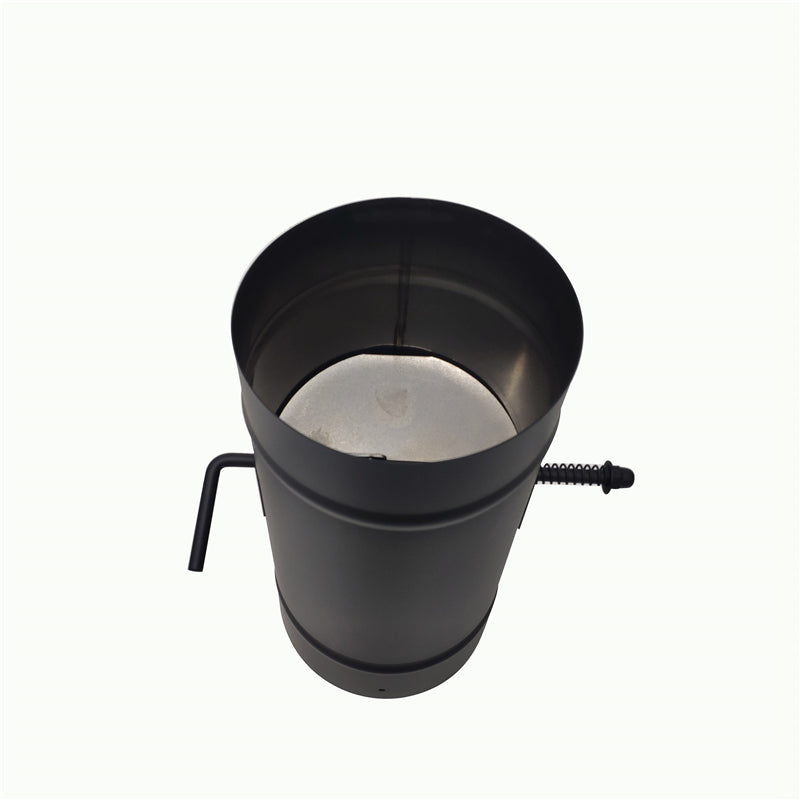

Single chimney 150mm Damper included Straight tube length 250mm Effective dimension 205mm.

A damper pipe is often inserted to weaken the force when the momentum of the draft is too strong.

Depending on the type of wood stove, there are some that do not require a damper tube at all, so please consult with the manufacturer of the wood stove you purchase.

Especially when the chimney is upright, closing the damper forcibly weakens the draft force, which prevents wasteful heat from escaping.

There are two holes about 500 yen coin so that the exhaust does not stop completely.

Stainless steel seamless welded pipe.

It is a connection method by socket connection.

0.7 mm thick SUS304 with excellent corrosion resistance.

It is a heat-resistant black painted product.

After inserting, it will be fixed with screws.

With the method that the scalpel mouth is on top , tar, etc., does not spoil the aesthetic appearance.

The one with the screw hole is facing upwards.

Please stop the screw in at least one place to prevent it from coming off.

The screws are not included in the product, so please prepare them yourself.

We recommend stainless steel screws with a length of about 15 mm that are sold under the names of tapping screws and drill screws.

Screwing to 0.7mm stainless steel plate is very hard even with those screws unlike 0.5mm steel plate.

In that case, I think that you can easily work by drilling a pilot hole of about 1.5 mm and then screwing it.


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
勝 星野
MG500には、ダンパー追加必要かも!

山のえんとつ屋さんで、MG500 オーブン付き鋼板製薪ストーブ(ギリシア製)と、煙突一式を購入して、リフォームした自宅に取り付けました。
MG500は、引き(ドラフト)が強すぎて、空気取り入れ全部閉じ、MG500についているダンパーを全閉じにしても、薪があっという間に燃えてしまい、燃焼調整ができませんでした。それで、このダンパーを追加しました。これでやっと調整できるようになりました。

竹田
150ダンパー

ヨツールF500にそのまま接続できました。
