Double chimney inner diameter 80 mm, outer diameter 130 mm Support base (for exterior wall mounting)

Double Chimney Seamless Welded Pipe with Thermal Insulation

It is a connection method by socket connection.

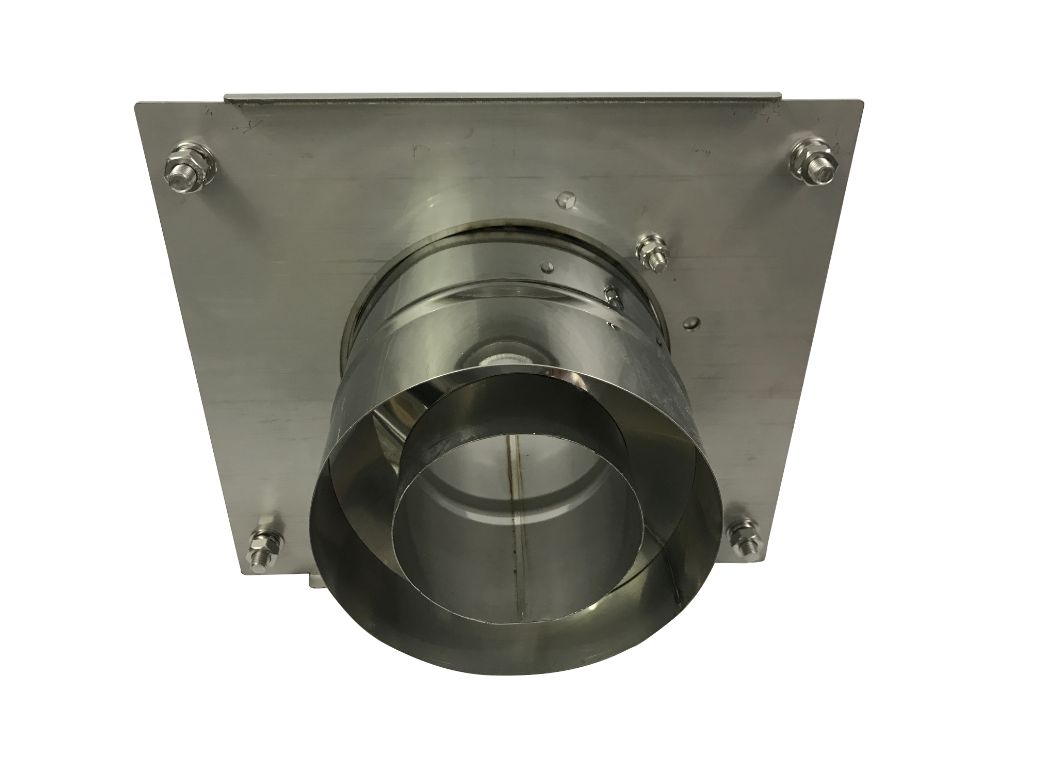

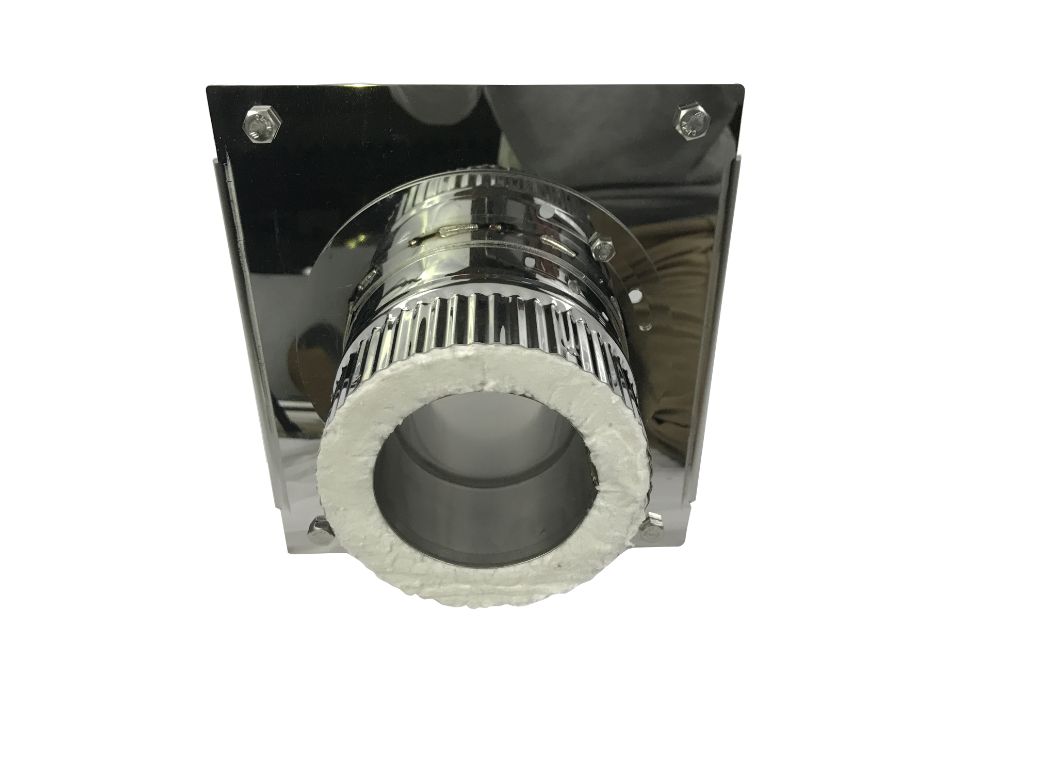

The support base is a part used in the chimney wall construction method.

This product supports the load of the chimney raised along the outer wall.

The distance from the outer wall to the outside of the chimney can be adjusted from 60mm to 120mm.

In general, a T-pipe (tee pipe) is placed on this support base and used as the lowest external member.

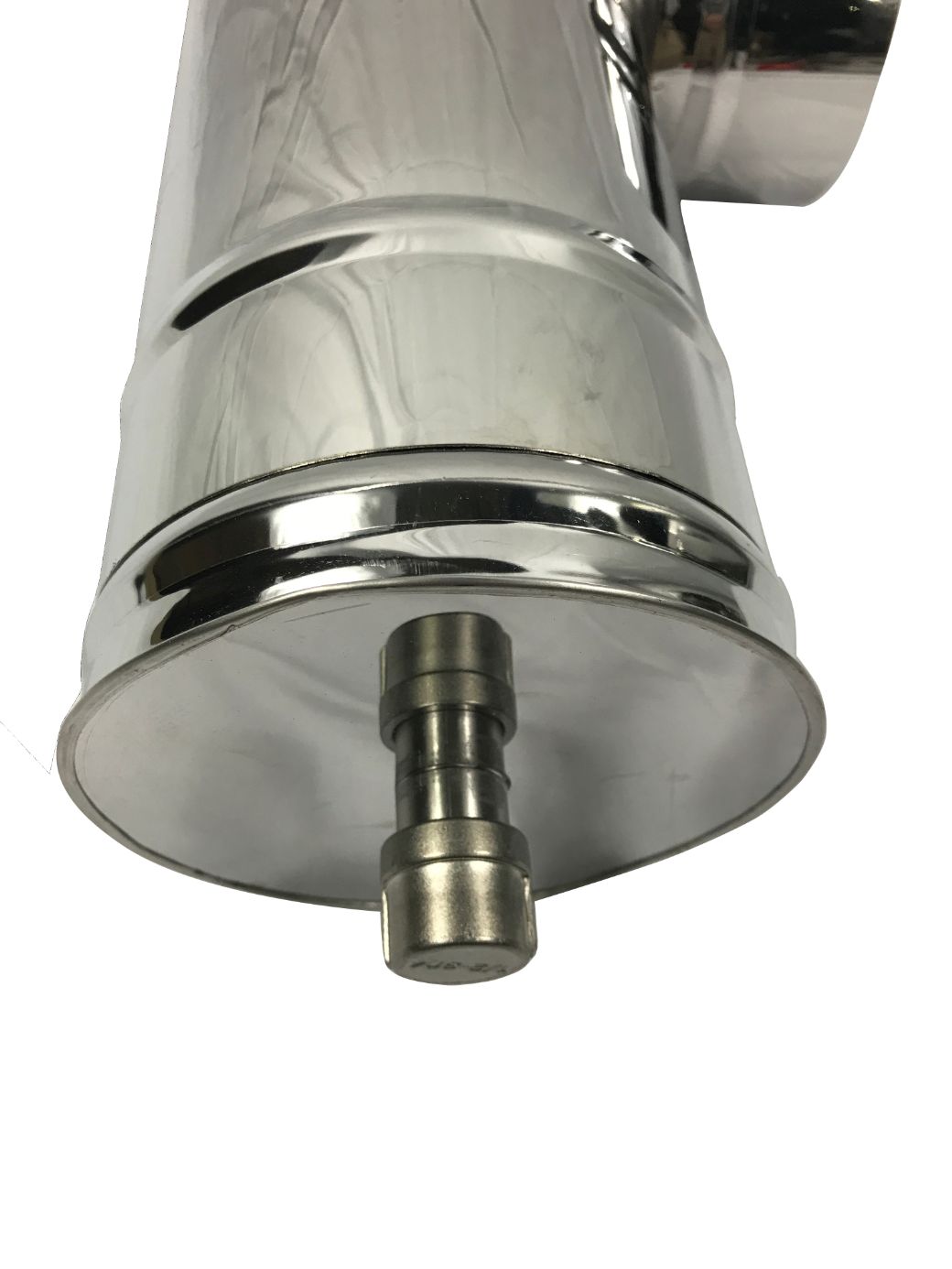

The general method is to attach the cap of the T tube (Tee tube) to the bottom of this support base.

This support base can also be used indoors or outdoors as a support in the middle of the chimney.

The inner tube is made of SUS316 with a thickness of 0.5mm, and the outer tube is made of SUS304 with a thickness of 0.5mm, and has excellent corrosion resistance.

150mm inner diameter and 200mm outer diameter with 25mm thick ceramic fiber insulation.

Unpainted product.

Connection can be made by tightening using a locking band.

It is also possible to connect with screws, etc.
