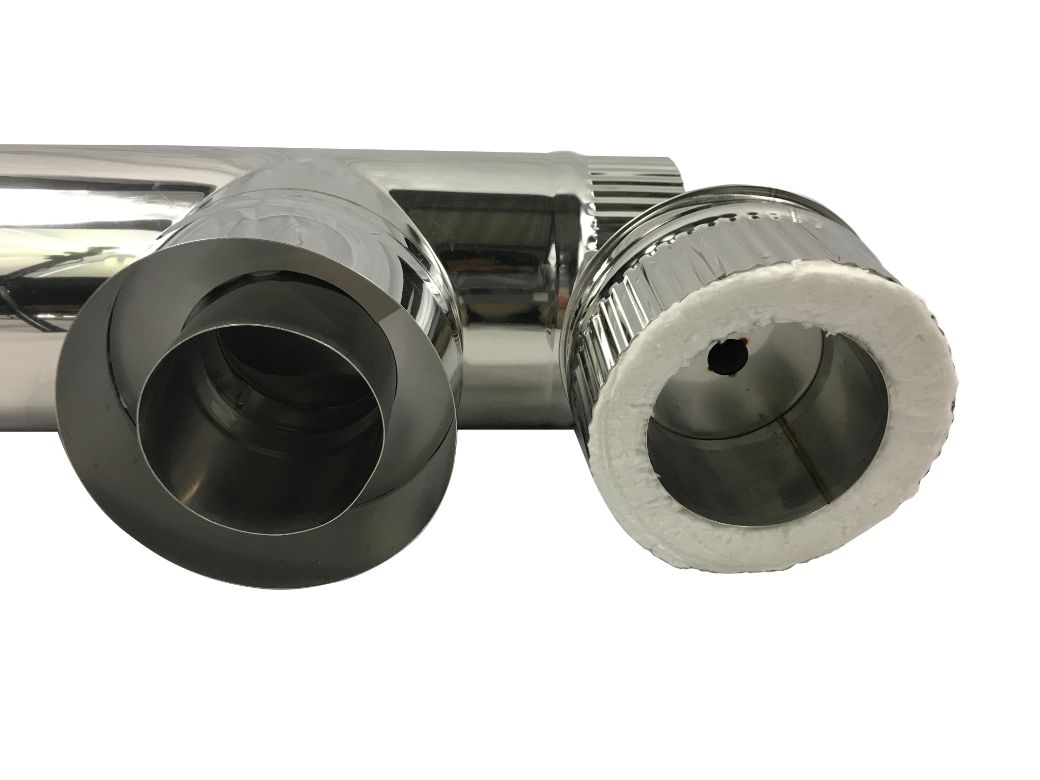

Double chimney 80mm inner diameter T tube (tee tube) with one cap Unpainted stainless steel
Please note that the cap is included but the locking band is not included.
It is possible to use the cap without the locking band, but it is inconvenient because the hole in the screw gets bigger every time you clean it.
This 80mm chimney is often used to install pellet stoves, ultra-compact wood stoves, and camping wood stoves in homes, villas, and sheds.
At Yama no Entotsuya, we are selling an ultra-compact indoor wood stove that is compatible with this chimney.
Learn more about the CF02 ultra-compact steel wood stove .
We also have a conversion adapter for 90mm, so it is possible to connect to a 90mm ten-mac design or a wood stove for camping such as G-STOVE.
For adapters, see Conversion Adapters .
Below is the product description.
Double Chimney Seamless Welded Pipe with Thermal Insulation
It is a connection method by socket connection.
The inner tube is made of SUS316 with a thickness of 0.5mm, and the outer tube is made of SUS304 with a thickness of 0.5mm, and has excellent corrosion resistance.
80mm inner diameter and 130mm outer diameter with 25mm thick ceramic fiber insulation.
Connection can be made by tightening using a locking band.
It is also possible to connect with screws, etc.
