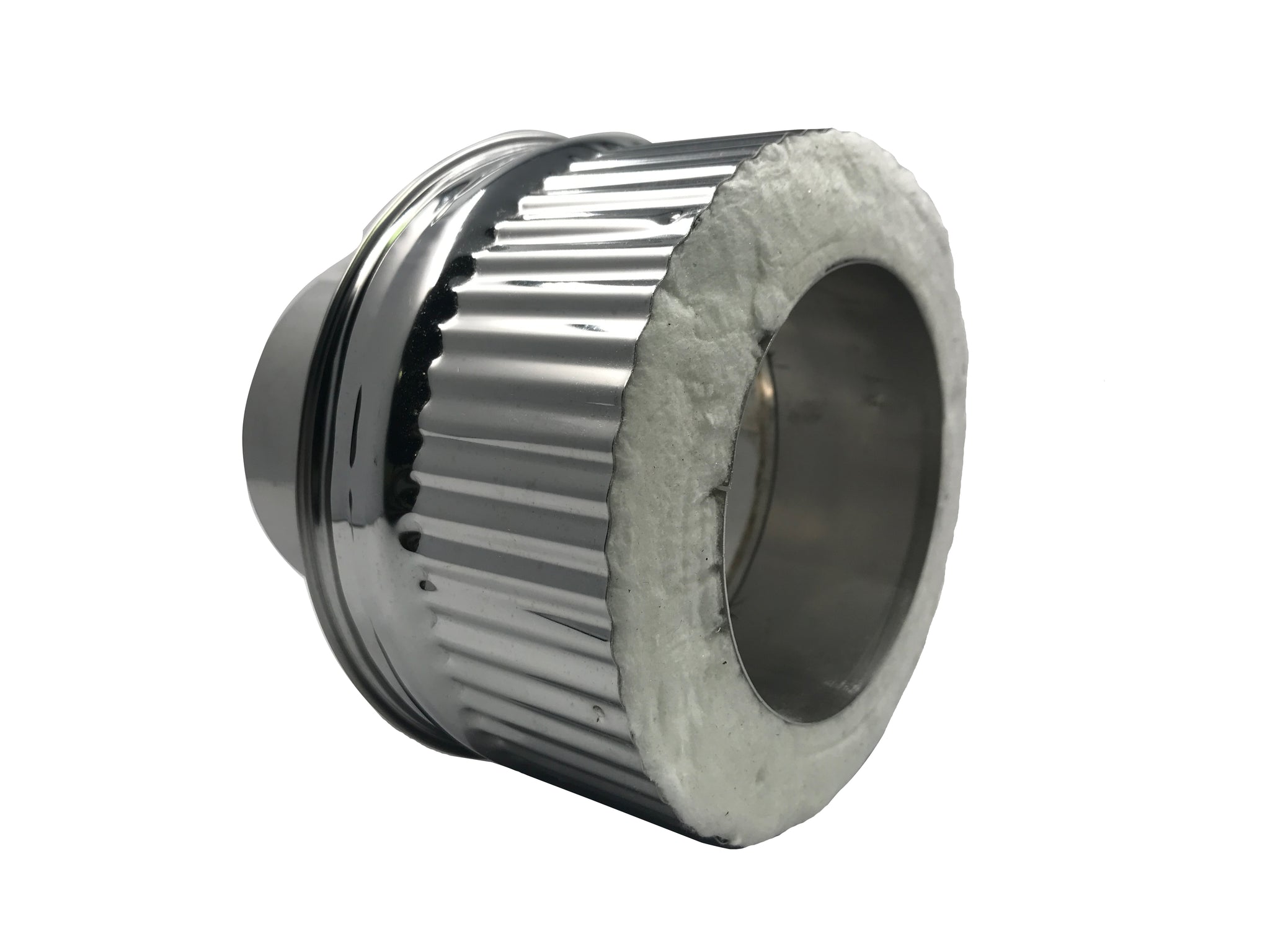

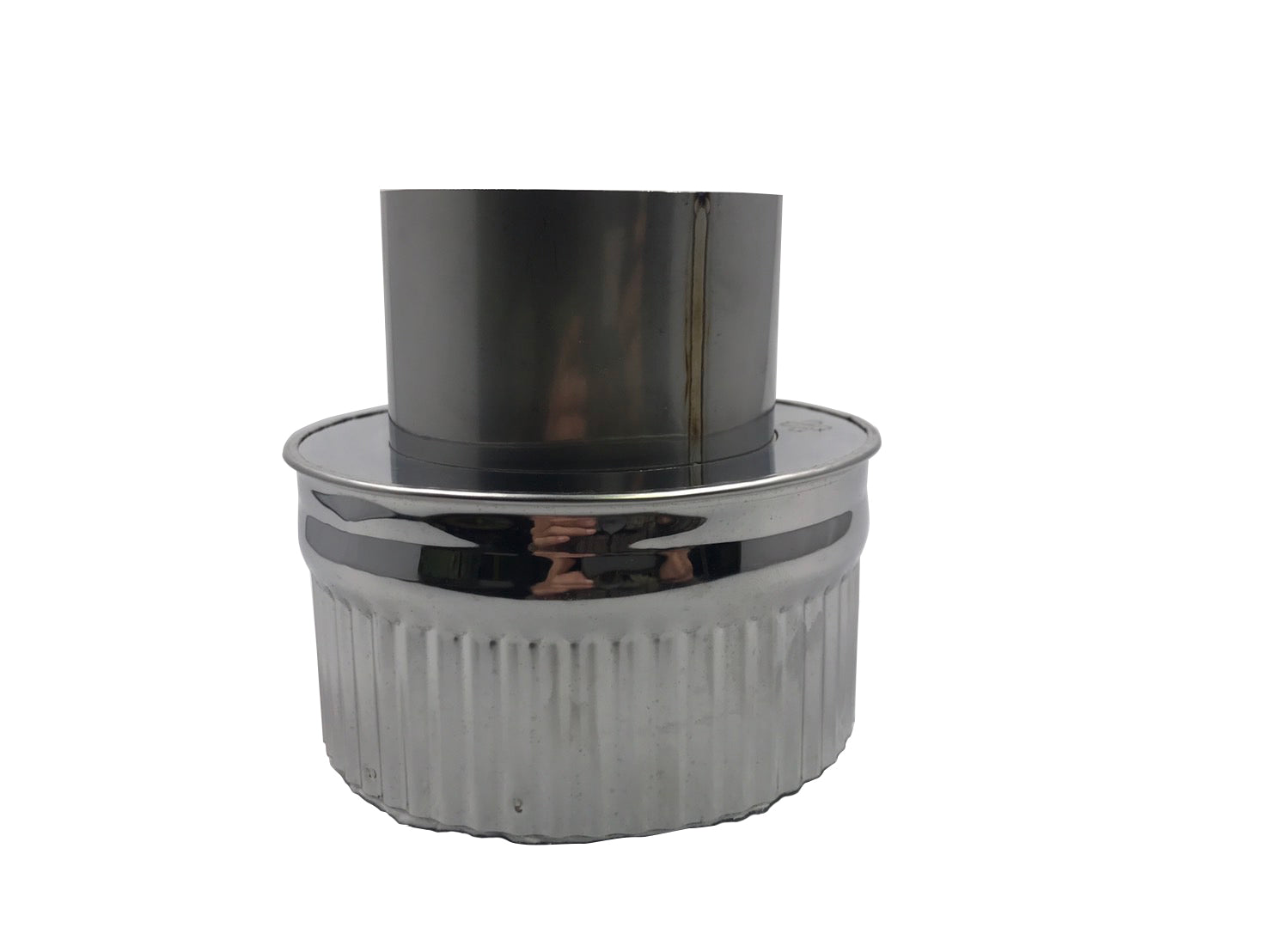

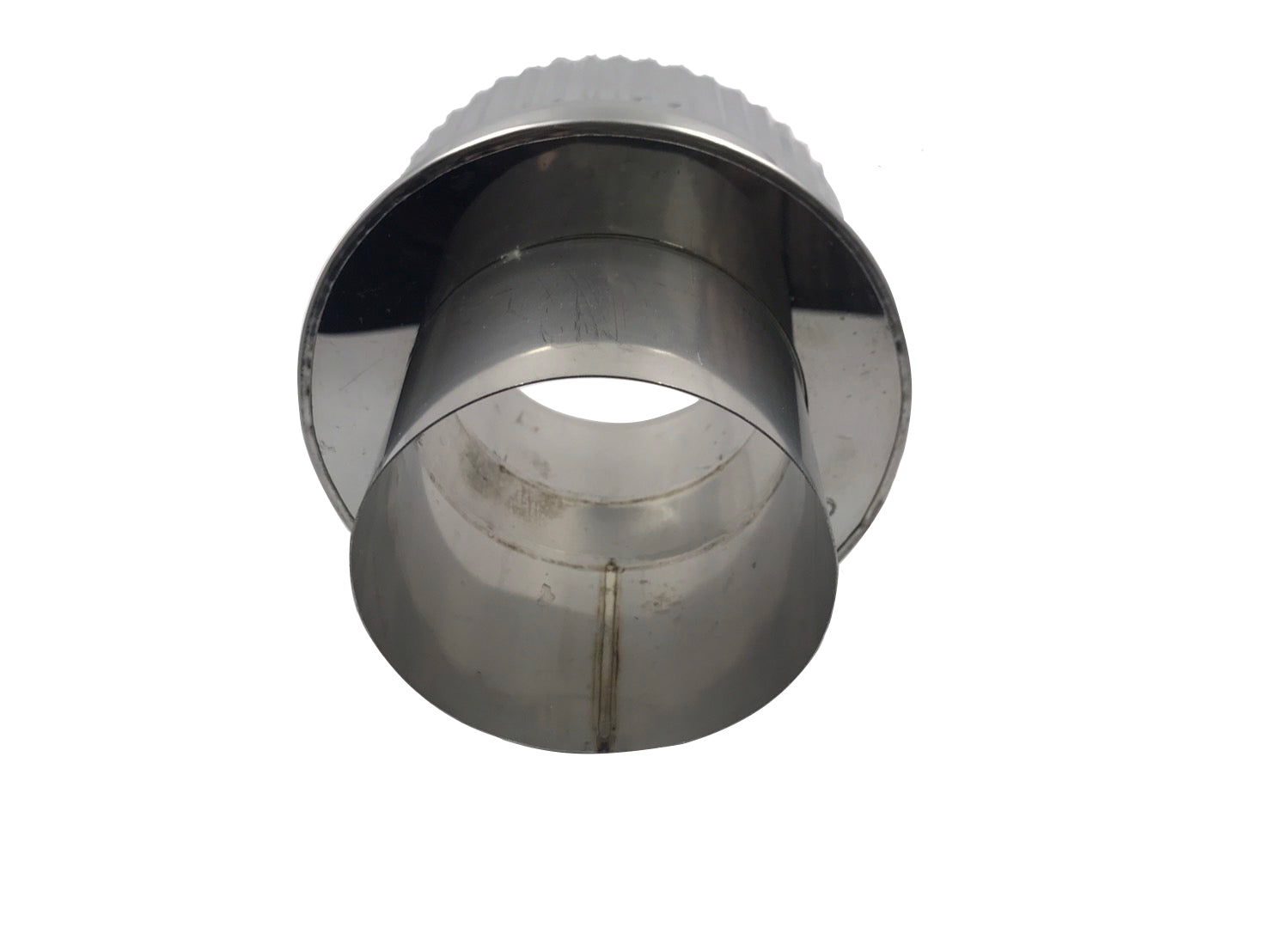

It becomes a conversion adapter from a single chimney to an insulated double chimney.
Currently, we have an 80mm chimney (male diameter: 78mm), which is the same size as a single chimney, and a 90mm diameter adapter (male diameter: 88mm).
This 80mm chimney is often used to install pellet stoves, ultra-compact wood stoves, and camping wood stoves in homes, villas, and sheds.
At Yama no Entotsuya, we are selling an ultra-compact indoor wood stove that is compatible with this chimney.
Learn more about the CF02 ultra-compact steel wood stove .
We also have a conversion adapter for 90mm, so it is possible to connect to a 90mm ten-mac design or a wood stove for camping such as G-STOVE.
Below is the product description.
Double Chimney Seamless Welded Pipe with Thermal Insulation
It is a connection method by socket connection.
The inner tube is made of SUS316 with a thickness of 0.5 mm, and the outer tube is made of SUS304 with a thickness of 0.5 mm, and has excellent corrosion resistance.
80mm inner diameter and 130mm outer diameter with 25mm thick ceramic fiber insulation.
Unpainted product.
Connection can be made by tightening using a locking band.
It is also possible to connect with screws, etc.
