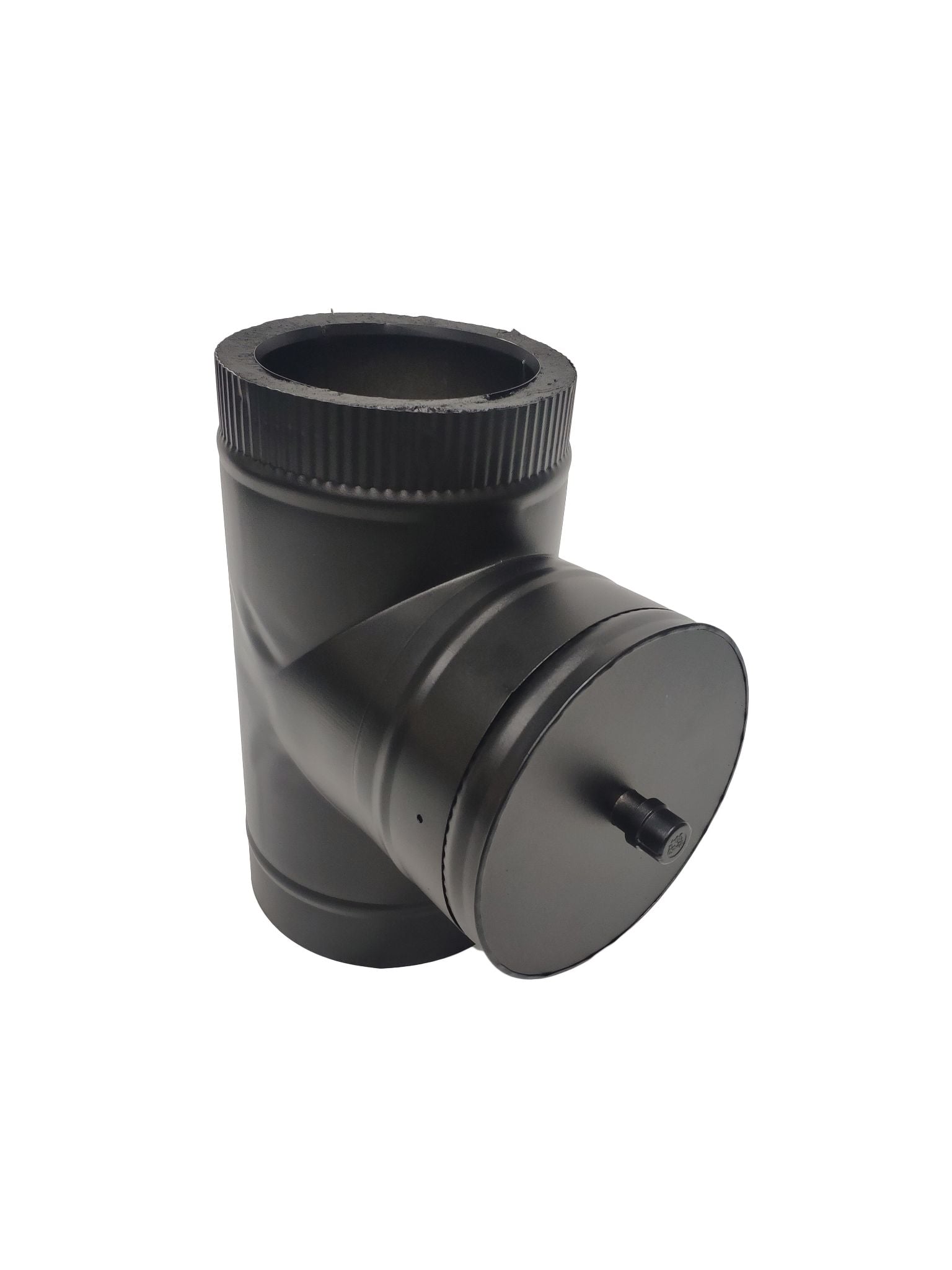

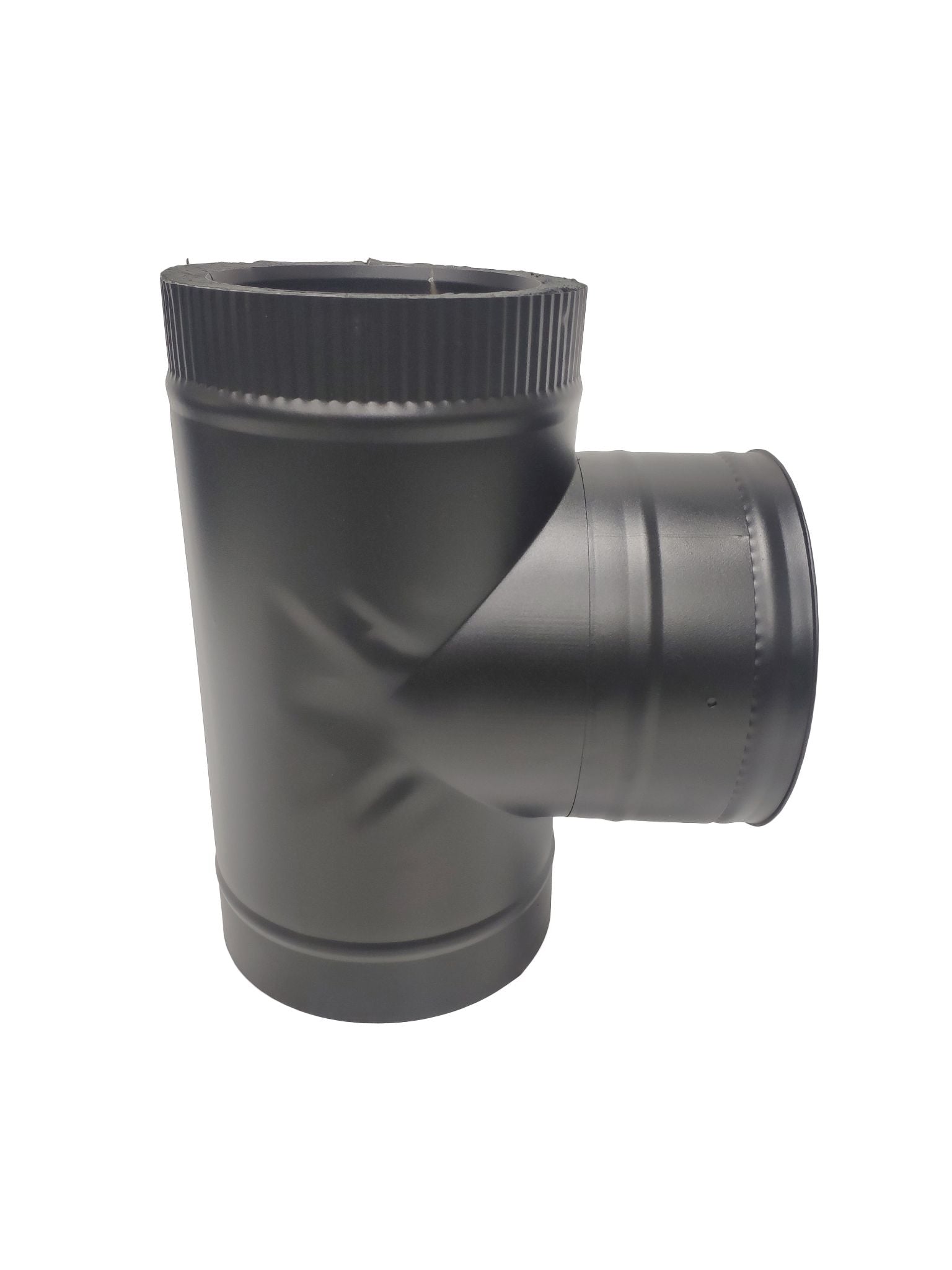

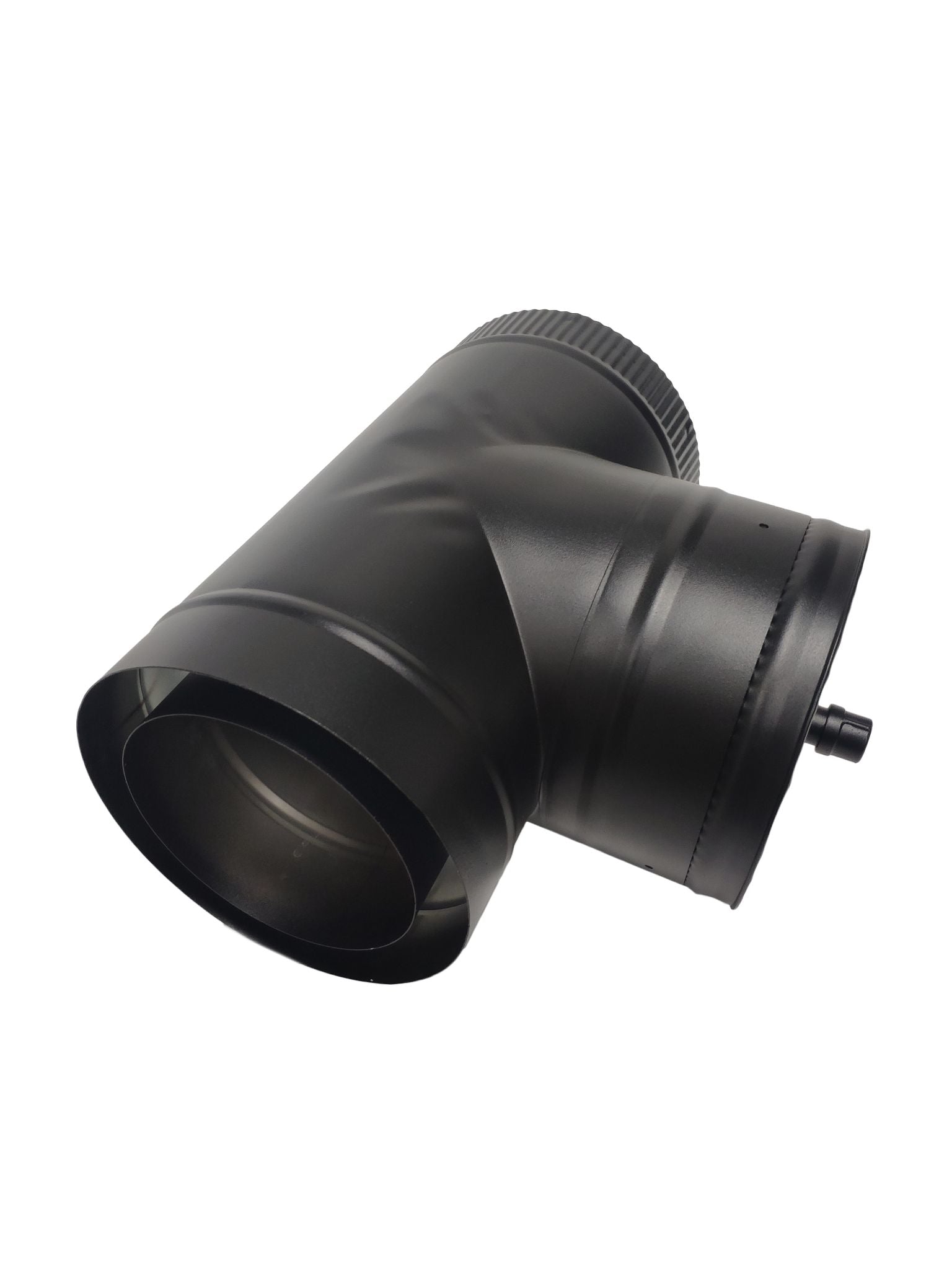

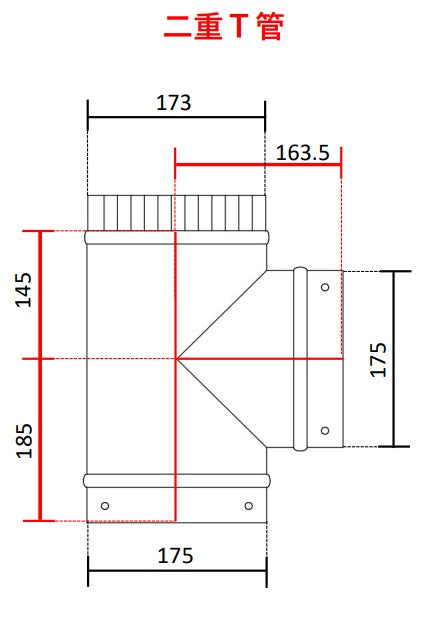

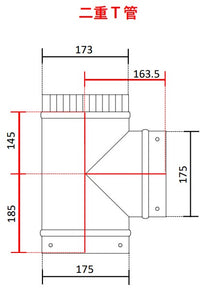

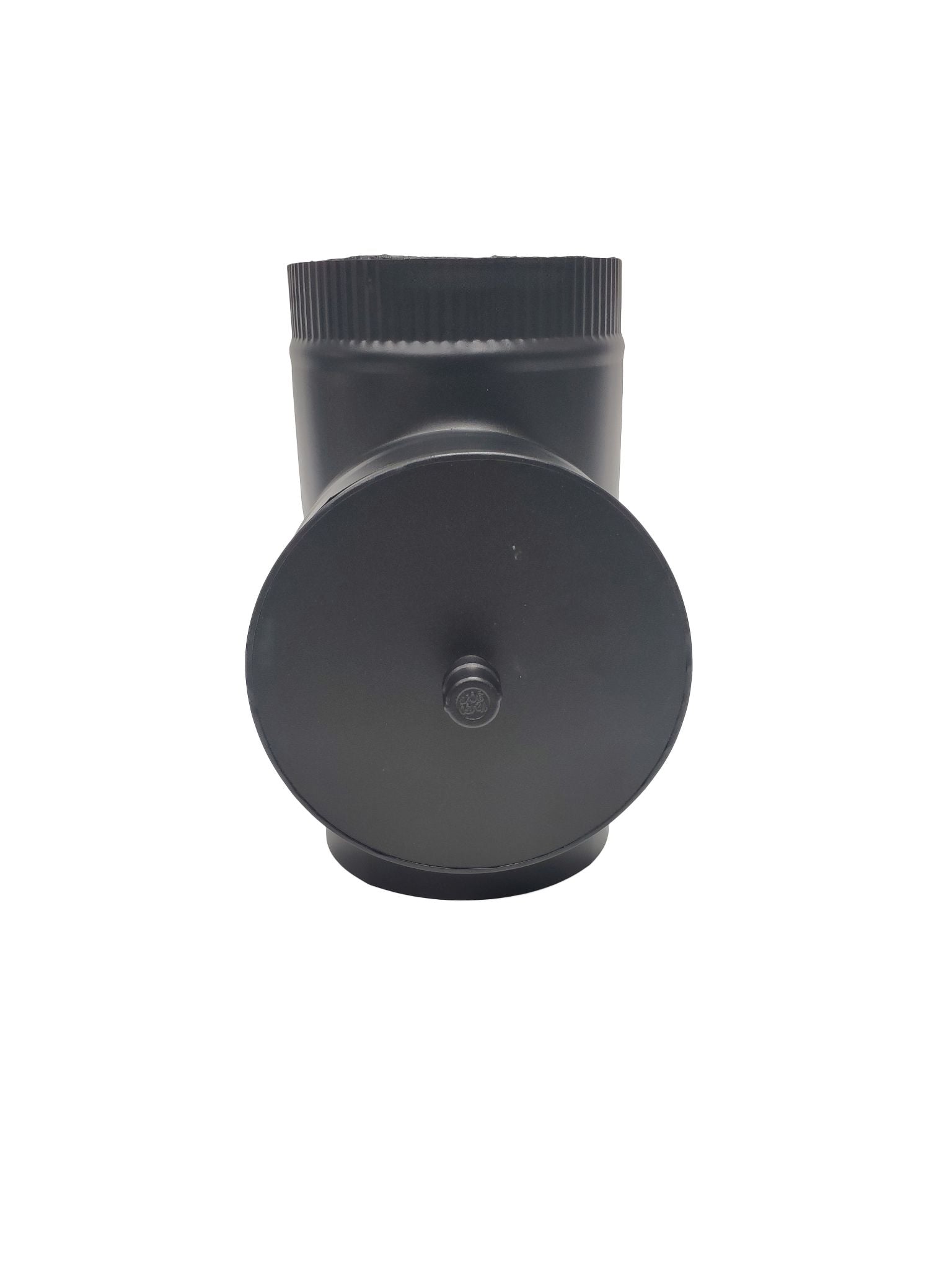

Double chimney Inner diameter 125mm, Outer diameter 175mm T pipe (tee pipe) with one cap
Since this product uses a welded press tube, the female mouth may be slightly elliptical, and the connection may be a little quirky.
Squeeze the male opening with your hand or push it with a flat-blade screwdriver to deform the shape of the circle while inserting it.
If you are working at heights with this product, you may have trouble fitting it in as it has some peculiarities as described above.
In such a case, we recommend that you make the connection below first.

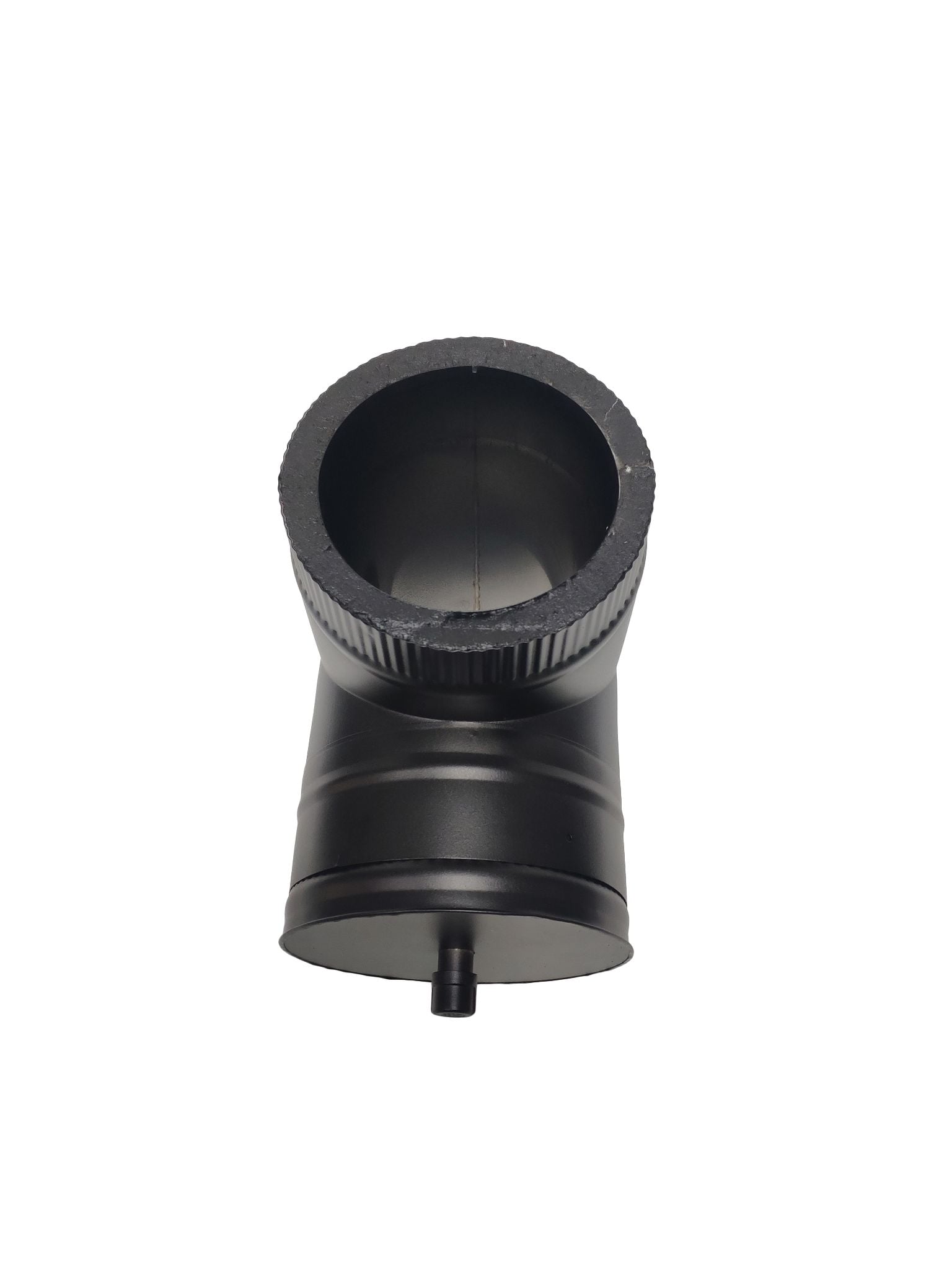

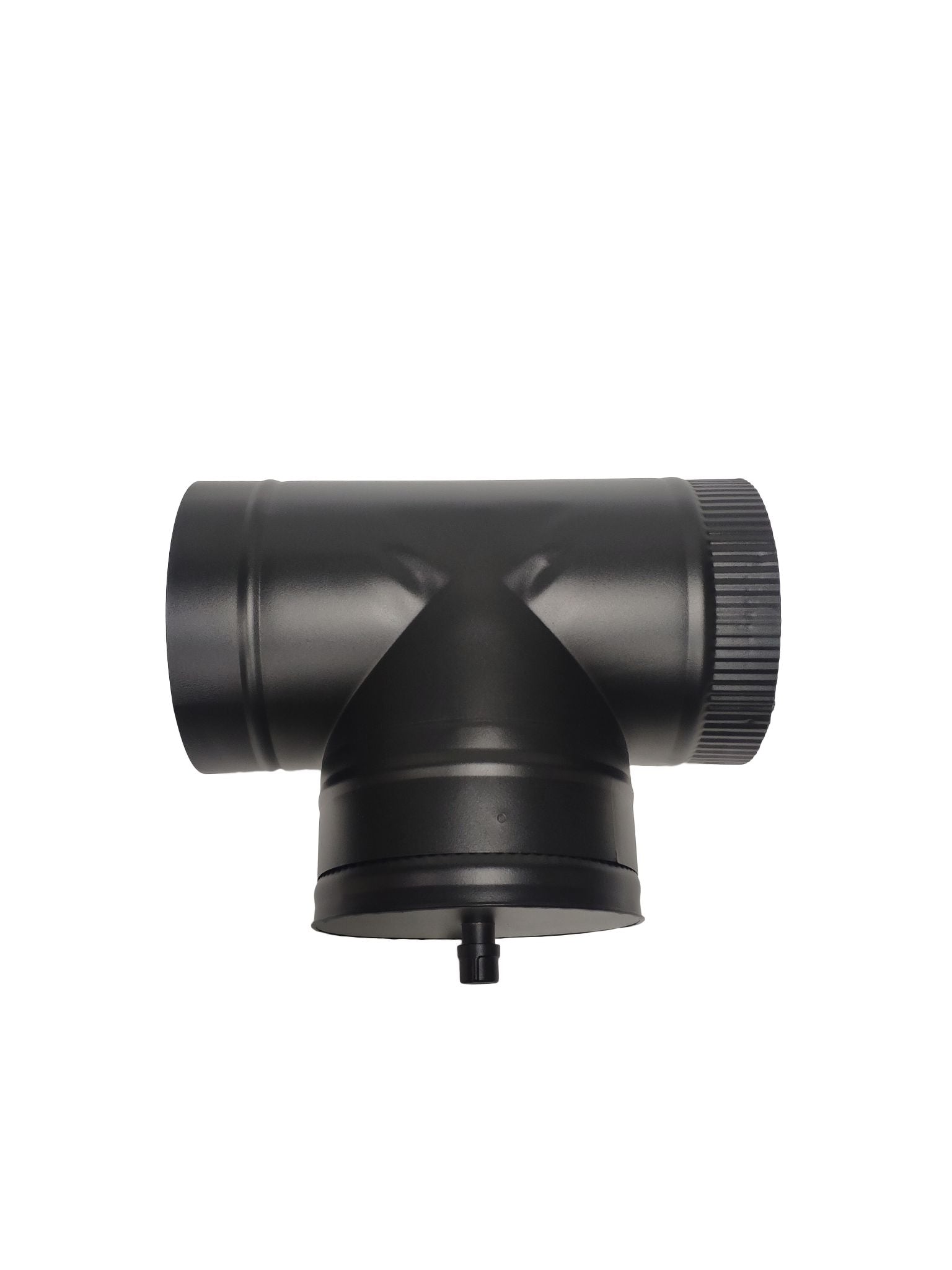

The cap of the T tube can be attached anywhere as long as it has a female mouth.
Double chimney with insulation Seamless welded pipe
It is a connection method by socket connection.
The inner tube is made of SUS316 with a thickness of 0.5 mm, and the outer tube is made of SUS304 with a thickness of 0.5 mm, and has excellent corrosion resistance.
Insulated with 25mm thick ceramic fiber.
It is a heat-resistant black painted product.
Connection can be made by tightening using a locking band.
It is also possible to connect with screws, etc.
