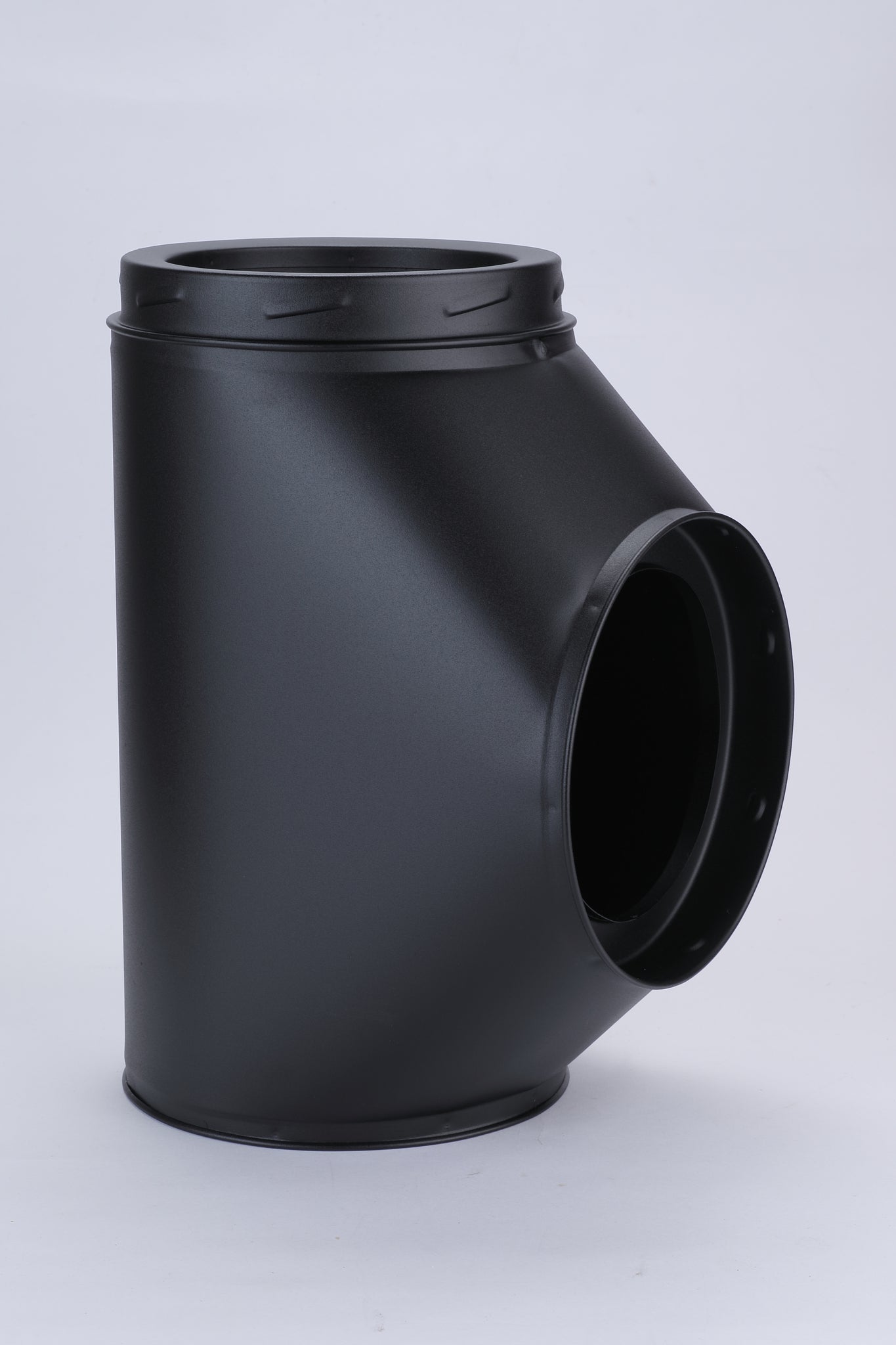

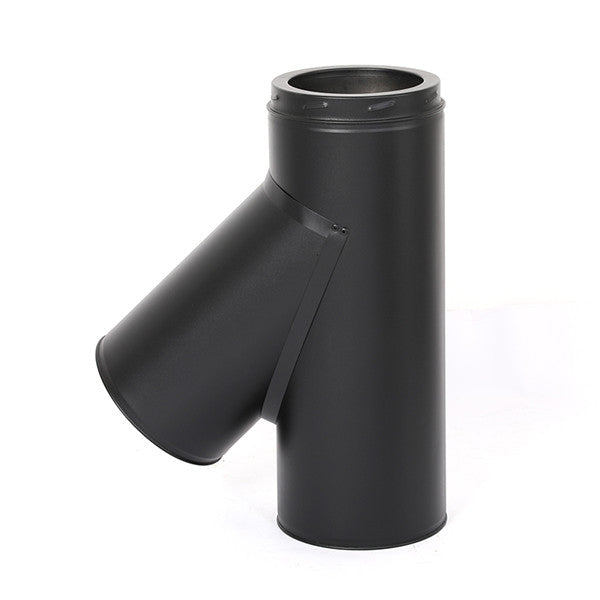

Double chimney with 150mm inner diameter and 200mm outer diameter T tube and Y tube cap

Please select the desired product from the pull-down menu.

Since the twist lock insert is hard, it is sold at a discount.

Sometimes it is hard to twist and does not turn.

There is no problem with fixing the locking band, but it is even more perfect if you fix it in 3 places with drill screws etc.

Double Chimney Seamless Welded Pipe with Thermal Insulation

It is a connection method using a twist lock system.

The inner tube is made of SUS316 with a thickness of 0.5 mm, and the outer tube is made of SUS304 with a thickness of 0.5 mm, and has excellent corrosion resistance.

Insulated with 25mm thick ceramic fiber.

It is a heat-resistant black painted product.

Connection can be made by tightening using a locking band dedicated to twist lock.

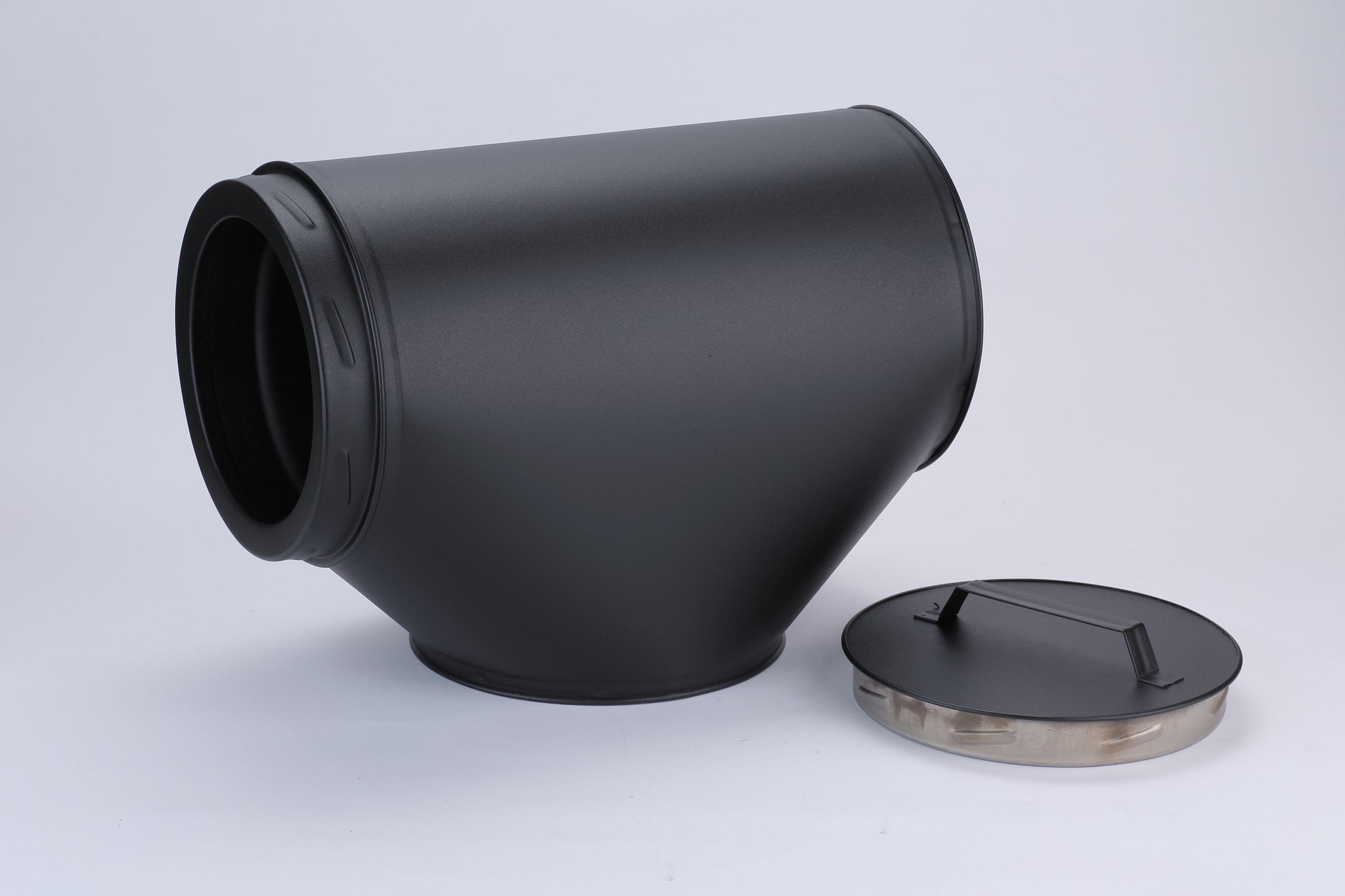

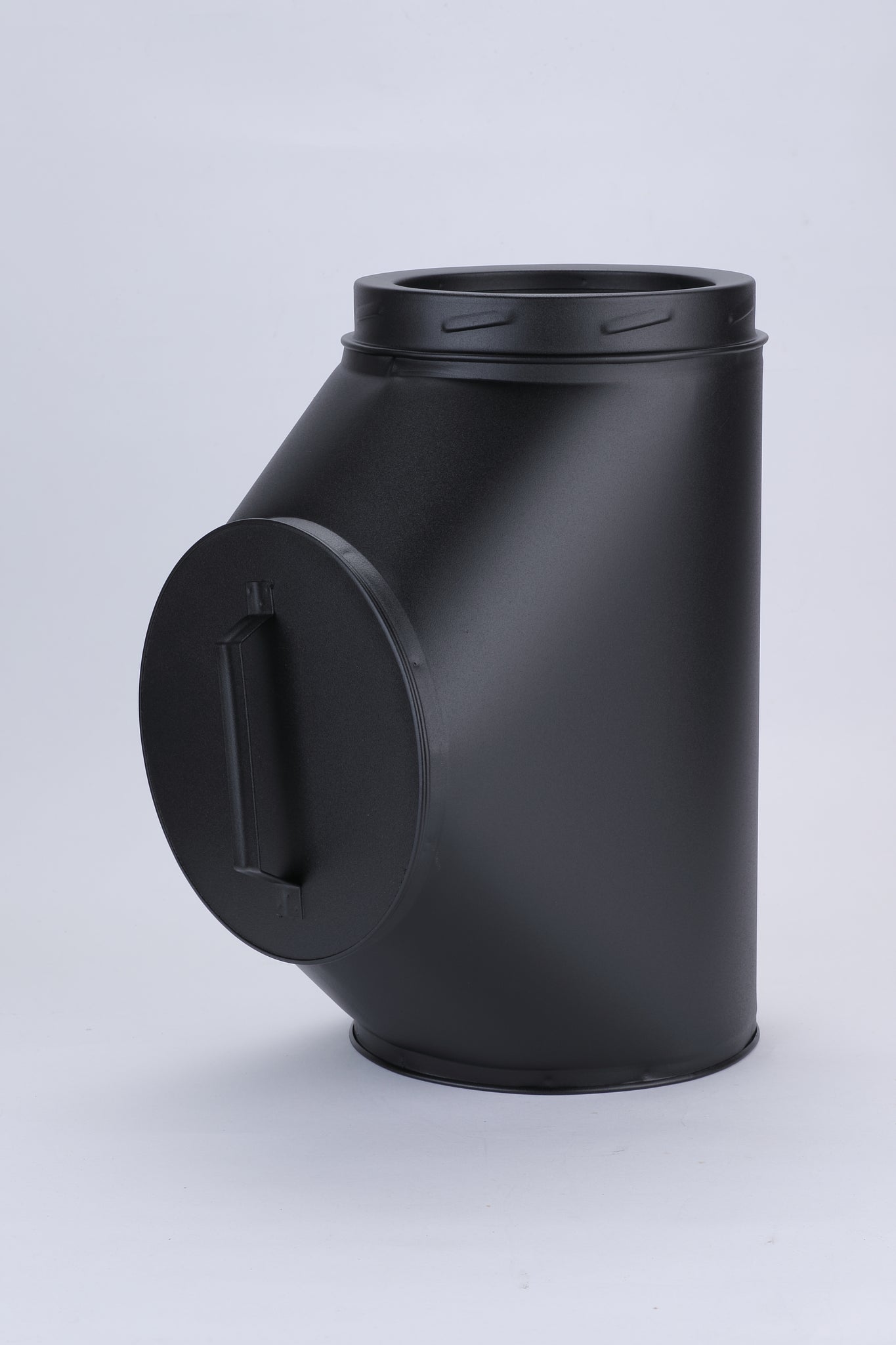

The cap can be attached anywhere as long as it has a female mouth.

The single chimney will be the same as the socket connection product.
