Twist Lock Insulated Double Chimney Inner Diameter 150mm / Outer Diameter 200mm Straight Pipe Adjuster Pipe 0.35Ⅿ~0.5M

Twist Lock Insulated Double Chimney Inner Diameter 150mm / Outer Diameter 200mm Straight Pipe Adjuster Pipe 0.35Ⅿ~0.5M

Vendor
山のえんとつ屋
Regular price
¥20,000
Sale price
¥20,000
Regular price
¥20,000
Sold out
Unit price
per
Tax included.

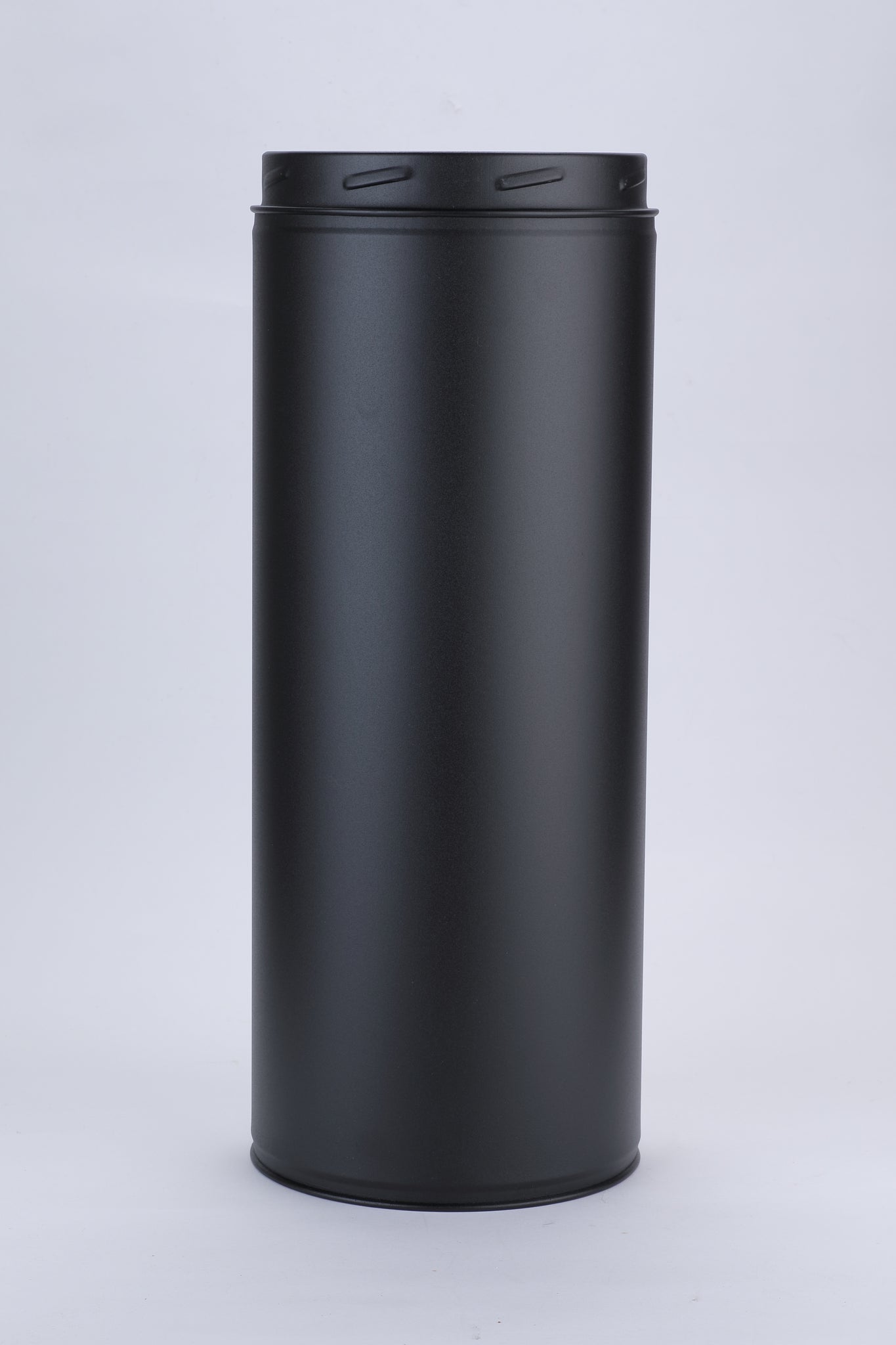

Double chimney, inner diameter 150mm, outer diameter 200mm, straight pipe adjuster pipe 0.35Ⅿ~0.5M

The adjuster tube (slide chimney) is a straight tube whose effective dimension can be freely changed from 0.39M to 0.50M.

For this reason, inserting an adjuster tube (slide chimney) is convenient for maintenance or replacement of the wood stove body.



Note the following when using the adjuster tube (slide chimney).

If the adjuster pipe (slide chimney) is extended, a double chimney part that is not filled with insulation will be created.

Special care must be taken, as there is a risk of fire if a wall or floor is penetrated where the insulation is not filled.

In other words, even though there is a rule in Europe and the United States that an insulated double chimney must be at least 5 centimeters away from combustibles, in the case of an adjuster pipe (slide chimney), if it is extended, there will be a portion that is not filled with insulation. (just a double chimney with an air layer)

If you use this product to remove the wall, please use the ceramic fiber insulation sold separately.

It is often used for the slanted part between the L pipes (El pipes) when avoiding the eaves outside.

Double Chimney Seamless Welded Pipe with Thermal Insulation

It is a connection method using a twist lock system.

The inner tube is made of SUS316 with a thickness of 0.5mm, and the outer tube is made of SUS304 with a thickness of 0.5mm, and has excellent corrosion resistance.

Insulated with 25mm thick ceramic fiber.

It is a heat-resistant black painted product.

Connection can be made by tightening using a locking band dedicated to twist lock.

The single chimney will be the same as the socket connection product.
