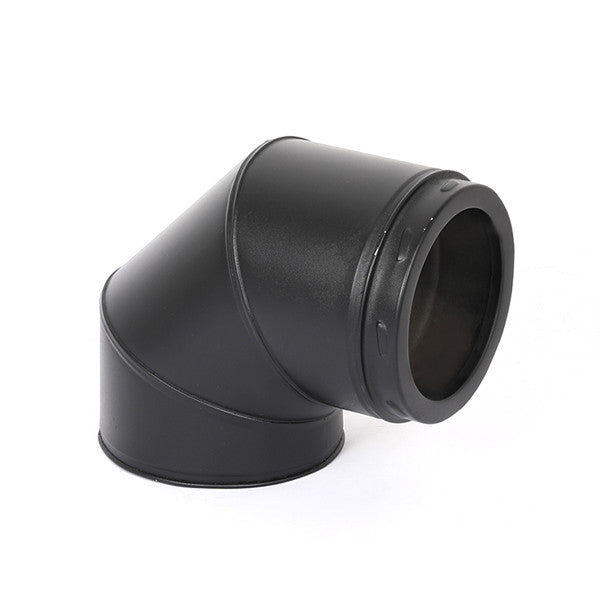

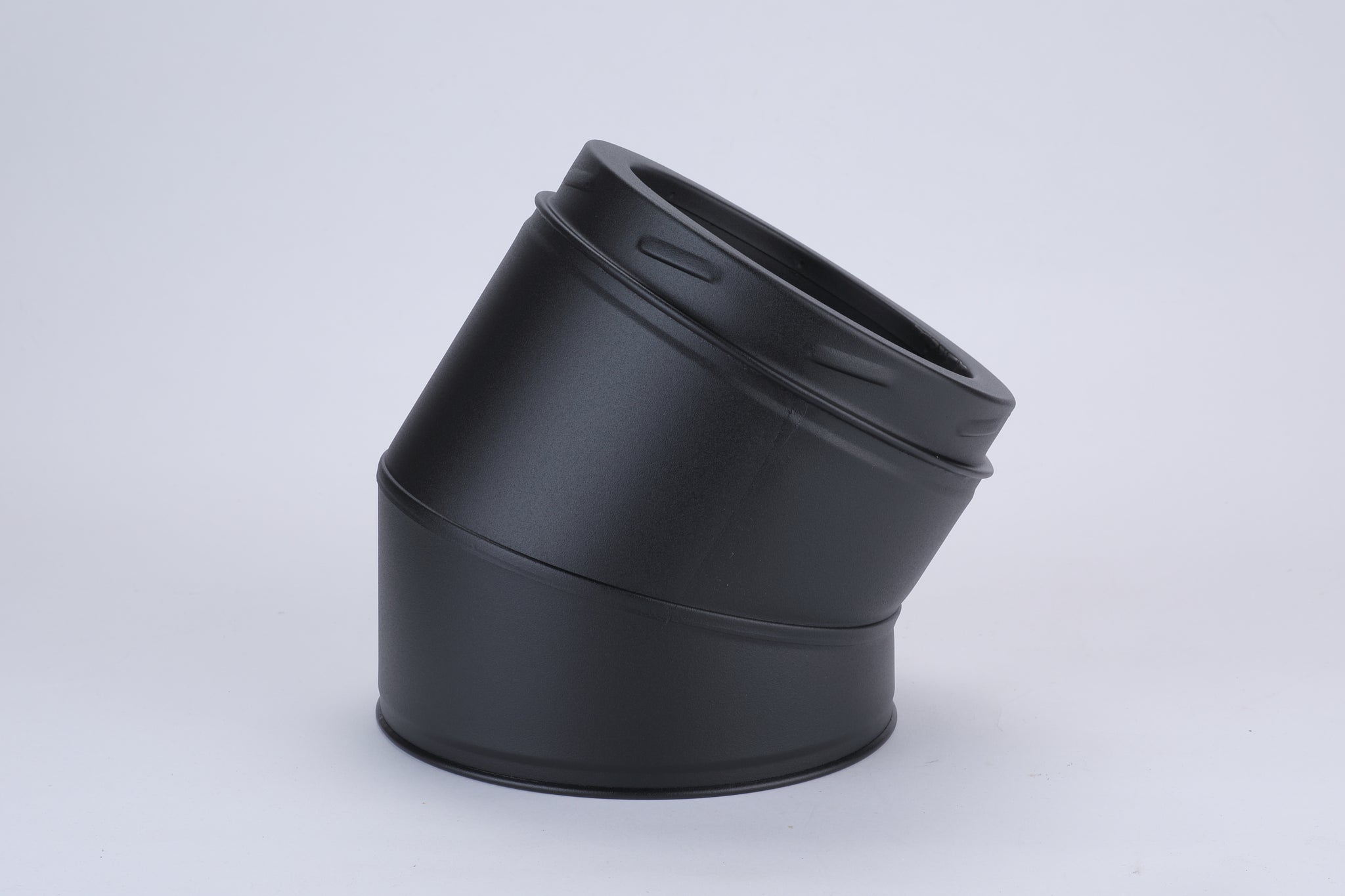

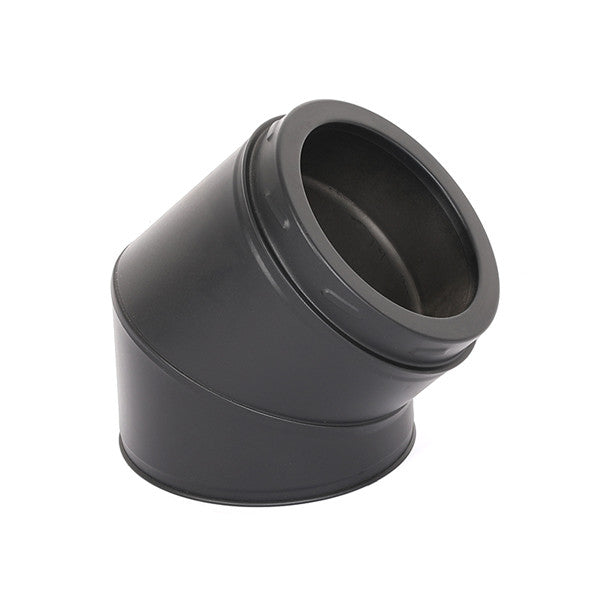

Double chimney inner diameter 150mm, outer diameter 200mm L pipe (L pipe) 90 degrees, 45 degrees, 30 degrees, 15 degrees
Please select the product with the required angle from the pull-down menu.
Since the twist lock insert is hard, it is sold at a discount.
Sometimes it is hard to twist and does not turn.
This product originally does not have a locking lock on the female side.
Twist lock teeth cannot be fixed at just the right angle, so they are not originally included.
Therefore, there is no problem with fixing with a locking band, but it is even more perfect if you fix the male and female lock parts in 3 places with drill screws.
Double Chimney Seamless Welded Pipe with Thermal Insulation
It is a connection method using a twist lock system.
The inner tube is made of SUS316 with a thickness of 0.5mm, and the outer tube is made of SUS304 with a thickness of 0.5mm, and has excellent corrosion resistance.
Insulated with 25mm thick ceramic fiber.
It is a heat-resistant black painted product.
Connection can be made by tightening using a locking band dedicated to twist lock.
The single chimney will be the same as the socket connection product.
